제품 매개변수
| Mode | GD-200-2-B-CJ | GD-400-2-B-CJ | |
| Basket size (W * H * D) cm | 60*60*60 | 90*65*70 | |
| Impact temperature range | Low temperature | -40~0℃ | |
| High temperature | +60~+150℃ | ||
| Heating rate of preheating zone | (No load) 5 ℃/min (customizable for 10-25 ℃) | ||
| Cooling rate of pre cooling zone | (No load) 2 ℃/min (customizable for 5-25 ℃) | ||
| Pre cooling area Pre cooling range | -10℃~-55℃ | ||
| Preheating area preheating range | +60~+180℃ | ||
| Residence time | ≥30min | ||
| Recovery time | ≤ 5 minutes to recover to within ± 2 ℃ | ||
| 온도 변동 | ≤1℃ | ||
| Residence time | ≥30min | ||
| Basket conversion time | ≤10S | ||
| Window size cm | 300*450 | ||
| Cryogen | R404A/R23 | ||
| 히터 | Electric heating | ||
| Condenser（A） | finned heat exchanger | ||
| Condenser（W） | Plate/sleeve/shell and tube heat exchanger | ||
| Air circulation | Extended shaft motor, stainless steel centrifugal fan blades | ||
| 냉각 방법 | Cascade refrigeration | ||
| 압축기 | Brand variable frequency compressor | ||
| Control method | Segmented Fuzzy PID Algorithm Control | ||
| Communication protocol interface | TCP/RS485 (CAN customizable) | ||
| 조작 패널 | 7인치 컬러 터치 스크린, 온도 곡선 디스플레이\EXCEL 데이터 내보내기 | ||
| Sensors | PT100 A-grade platinum resistor | ||
| Protector | Heater dual temp protection, refrigeration system protection, and electrical overcurrent and overload protection, etc | ||
| Dimensions (W*H*D)cm | 149*219*257 | 179*239*257 | |
| 전원 공급 장치 | 380V 50HZ | ||
| Insulation material | Glass fiber cotton&polyurethane | ||
| Inner box material | SUS304 stainless steel | ||
| Outer box material | Cold-rolled steel plate+spray coating | ||
| 执行满足标准 | GB/T 2423.1、GB/T 2423.2、GJB 150.3A、GJB 150.4A、GB/T 5170 | ||
Why choose lneya as your temperature control supplier?
18+
Years of experience
30000+
Satisfied Customers
25000
m² Production Area
80+
Patented Technologies

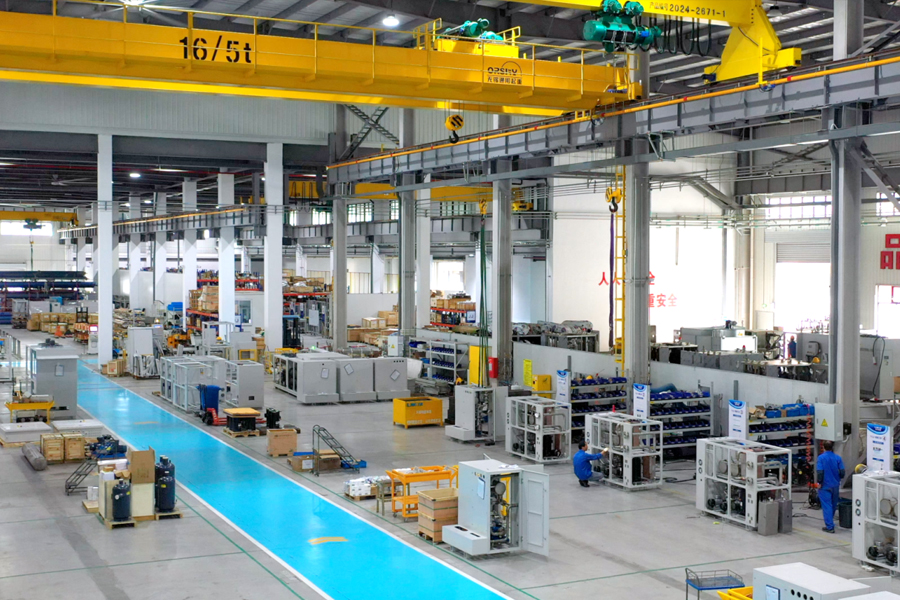

Visit LNEYA factory
