Battery thermal management systems

KRY 0℃~100℃

Cooling capacity 2.5kW~60kW
순환 펌프 MAX
2~50L/min 0.2~2bar
Temperature accuracy ±0.3℃
Power AC380V/ AC460V

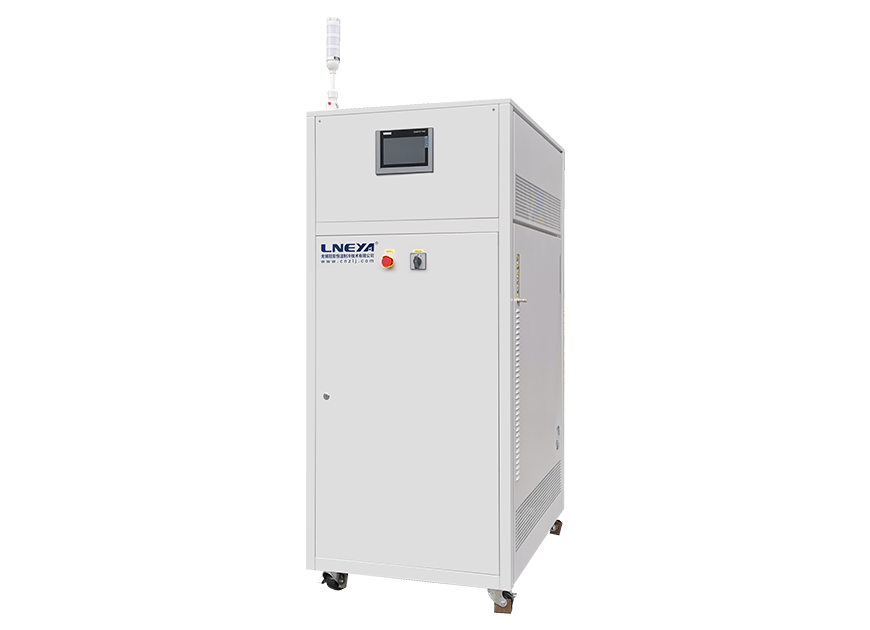

Battery thermal management systems overview

KRY battery thermal management system is the normal-temperature series automotive chiller. Its temperature control range is 0℃~100℃. This equipment carries out tests on components of new energy vehicles. Its temperature control range is around 0.3℃.

0°C

최저

100°C

최고

±0.3°C

온도 제어 정확도


Battery thermal management systems parameters

모델 KRY-25 KRY-55 KRY-75 KRY-A10 KRY-A15
KRY-A15W
KRY-A25
KRY-A25W
KRY-A38W KRY-A60W
온도 범위 0℃~+100℃
Temp display 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k 0.01k
유량 출력 2~20 L/min 2~25 L/min 2~25 L/min 2~25 L/min 2~25 L/min 2~25 L/min 5~50 L/min 5~50 L/min
유량 정확도 ±0.2 L/min
난방 용량 2.5kW 5.5kW 7.5kW 10kW 15kW 15kW 25kW 38kW
냉각 용량 100℃ 2.5kW 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
20℃ 2.5kW 5.5kW 7.5kW 10kW 15kW 25kW 38kW 60kW
5℃ 1.8kW 3.8kW 5.2kW 7kW 11kW 18kW 27kW 42kW
연결 크기 G3/4 G3/4 G3/4 G3/4 G3/4 G3/4 G3/4 G3/4
Water-cooled type Wat25度         3200L/H
ZG1
6000L/H
G1 1/4
9000L/H
DN40
15000L/H
DN50
전원 380V50HZ 4.5kW220V 8.5kW 11.5kW 16kW 18kW 28kW 40kW 61kW
치수 cm 50*85*145 55*100*175 55*100*175 70*100*175 80*120*185 100*150*185 100*150*185 100*150*185

온도 피드백k

온도 피드백 PT100(입구 온도, 출구 온도)


압축기

높은, 미쓰비시, 파나소닉 및 기타 압축기


통신 프로토콜

MODBUS RTU 프로토콜 RS485 인터페이스



LNEYA Battery Thermal Management Systems 애플리케이션

suitable for achieving temperature control during the component testing phase of new energy vehicles, especially the temperature control of the battery package.

automotive chillers model

KRY -40℃~100℃
battery chillers

KRYZ -40℃~100℃
부동액 쿨러

KRY -40℃~100℃ Multi-channel
액체 냉각 냉각기

신뢰할 수 있는 이동식 냉각기 공장

글로벌 서비스

30,000 +customers.
20+ countries.

인증 특허

CE ,SGS, ISO certification.

판매 후 서비스

24/7 solutions.1 year warranty

전문 팀

15+ years experience.

품질 관리

Quality test.

faq

When you place an inquiry, we will communicate with you in advance to understand your requirements and listen carefully to the configuration you need. Our quotation is in accordance with the norms. We won’t deceive you just because you don’t understand refrigeration. We don’t overcharge you just because you are a new customer. We won’t raise prices just because you are an end-user. We won’t compromise on quality just because you are a frequent  customer.

Yes. The whole system is a fully closed system. There will be no water vapor at high temperature, and the water in the air will not be absorbed at low temperature. The fully enclosed system will not increase the pressure because of high temperature in operation, low temperature automatically supplement the heat conducting medium.

*
*
