듀얼 채널 냉각기
FLTZ -45℃~90℃
FLTZ dual channel chiller easily achieves independent and precise temperature control for multiple fluid channels, with a temperature control accuracy of up to ±0.1℃, widely applied in the semiconductor industry.
fltz series
-45°C
최저
90°C
최고
±0.1°C
온도 제어 정확도
Contact LNEYA sales engineer for catalog or price.
| 모델 | FLTZ-203W-2T | |
| 파이프라인 | channel 1 | channel 2 |
| 온도 범위 | -20℃～+90℃ | -20℃～+90℃ |
| 냉각 용량 | ±0.1℃（Customizable temperature control accuracy of ±0.01°C.） | |
| 난방 용량 | 4kW@-10℃ | 4kW@-10℃ |
| 열 전도성 매체 유량 | 2kW | 2kW |
| Heat conducting medium connection size | 20L/min 0.5MPa | 20L/min 0.5MPa |
| Heat transfer interface | ZG3/4 | ZG3/4 |
| 주변 온도 | 10～35℃ | 10～35℃ |
| 주변 습도 | 30～70% | 30～70% |
| 냉각수 온도 | 15～20℃ | 15～20℃ |
| Cooling water flow rate | 20L/min | 20L/min |
| 무게 | 400kg | |
| 치수 cm | 50*90*160 | |
| 모델 | FLTZ-406W/ETCU-015W | |
| 파이프라인 | channel 1 | channel 2 |
| 온도 범위 | -45℃～+40℃ | +10℃～+80℃ |
| 냉각 용량 | ±0.1℃（Customizable temperature control accuracy of ±0.01°C.） | |
| 난방 용량 | 11kW@-20℃ 5kW@-40℃ |
13kW@+10℃ |
| 열 전도성 매체 유량 | 2kW | 6kW |
| Heat conducting medium connection size | 17L/min 0.7MPa | 17L/min 0.7MPa |
| Heat transfer interface | ZG3/4 | ZG3/4 |
| 주변 온도 | 10～35℃ | 10～35℃ |
| 주변 습도 | 30～70% | 30～70% |
| 냉각수 온도 | 15～20℃ | 15～20℃ |
| Cooling water flow rate | 40L/min | 20L/min |
| 무게 | 550kg | |
| 치수 cm | 60*100*185 | |
| 모델 | FLTZ-203W/2T 듀얼 시스템 | FLTZ-305W/2T 듀얼 시스템 | FLTZ-406W/2T 듀얼 시스템 | |||
| 온도 범위 | -20℃~90℃ | -30℃~90℃ | -45℃~90℃ | |||
| 온도 제어 정확도 | ±0.1℃（Customizable temperature control accuracy of ±0.01°C.） | |||||
| 열 전도성 매체 유량 | 최대 15~45L/min 6bar | |||||
| 난방 용량 | 2.5kW | 2.5kW | 2.5kW | 2.5kW | 3.5kW | 3.5kW |
| 냉각 용량 | 3kW @-15℃ | 3kW @-15℃ | 5kW @-15℃ | 5kW @-15℃ | 2.5kW @ -35℃ | 2.5kW @ -35℃ |
| 내부 순환 체액 용량 | 5L | 5L | 8L | 8L | 8L | 8L |
| 냉각수 인터페이스 | 20℃에서 50L/min | 20℃에서 600L/min | 20℃에서 50L/min | |||
Dual Channel Chiller’s Characteristics 1
There are 2 channels with the same/different specifications in one shell;
The temperature of two fluid channel systems can be controlled separately by one host;
A power supply system achieves temperature control for two channels.
Dual Channel Chiller’s Characteristics 2
By simultaneously controlling the variable frequency compressor, variable frequency fan, and electronic expansion valve, good temperature stability can still be maintained during thermal load fluctuations.
Dual Channel Chiller’s Characteristics 3
energy are consumed;
Compressor hot gas heating within 40 degrees;
3-point temperature control
Compared to two single channel units, it reduces the overall footprint and wiring
Can reduce and share internal components.
Contact an industrial chiller sales representative to obtain a standard product brochure for chillers, or customize your process chiller.
1.Independent temperature control
Each channel of the FLTZ dual channel chiller can achieve independent temperature control. You can set different temperature ranges, cooling and heating capacities, and heat transfer medium flow rates according to application needs.
2.Compact structure
The expansion tank, condenser, cooling water system, etc. can be shared in dual channels, making your process chiller more compact and occupying a smaller area.
DUAL CHANNEL CHILLER’S APPLICATIONS

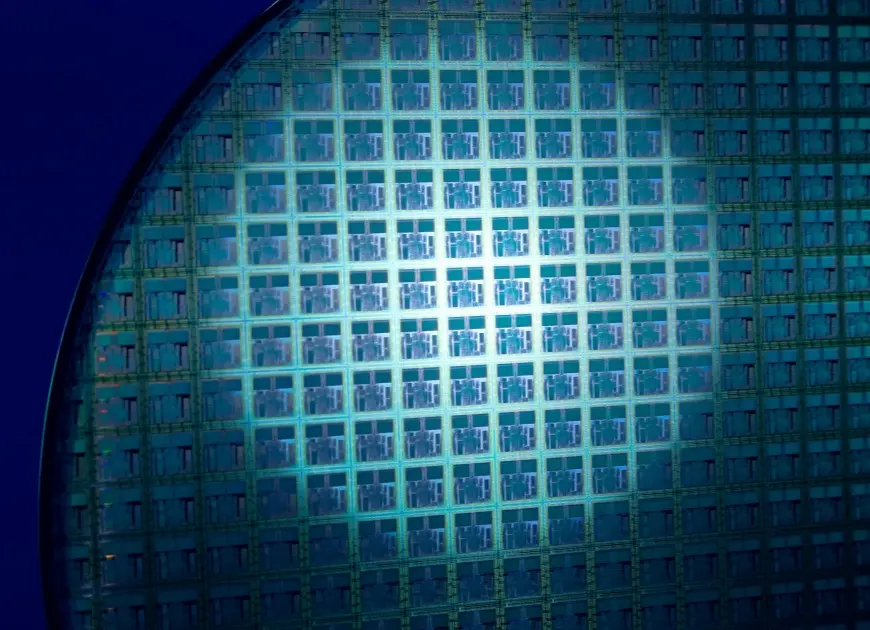

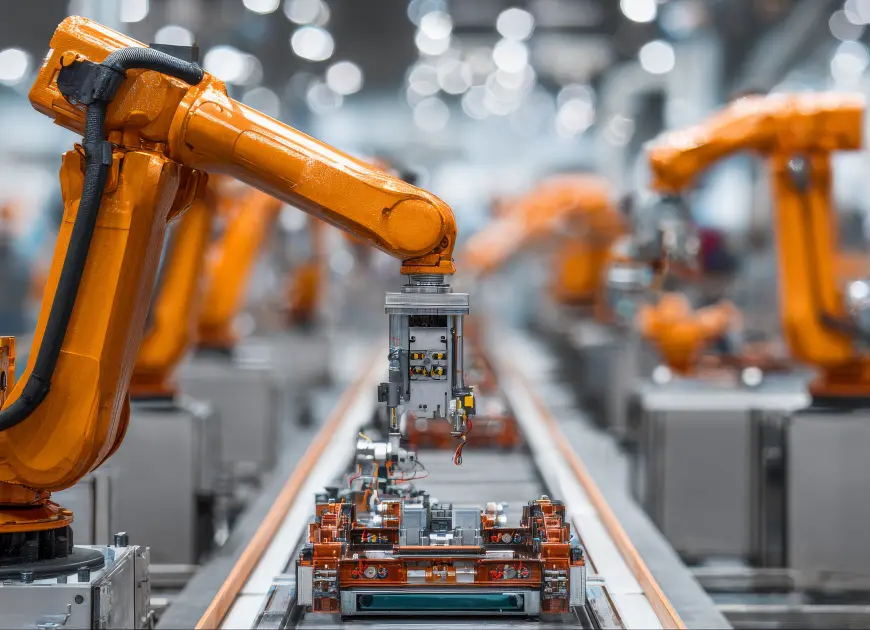

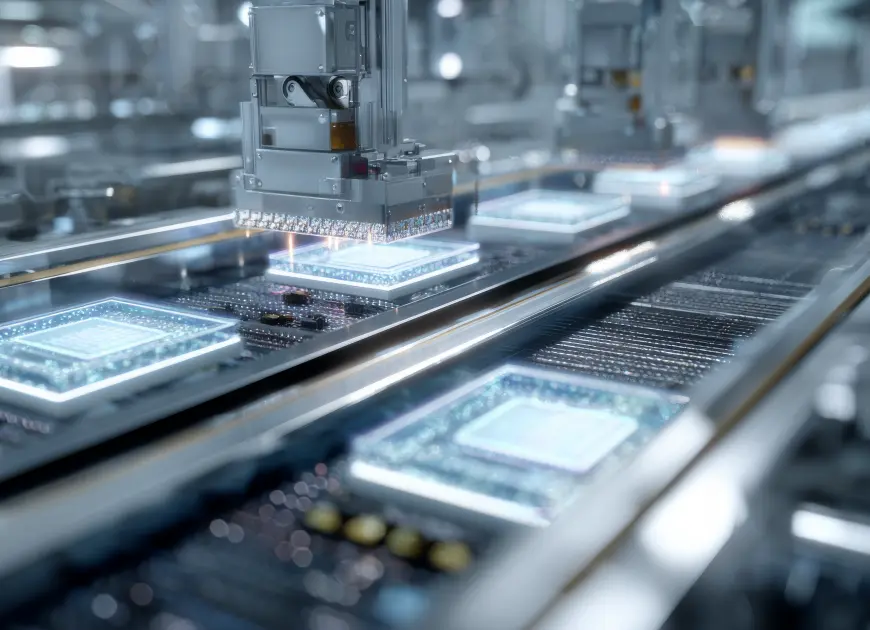

FLTZ dual channel chillers are widely used in many key process links in the semiconductor industry with their excellent temperature control technology. From wafer manufacturing to chip packaging and testing, we can provide you with reliable temperature control solutions to meet your needs for high-precision and high-stability thermal management.
