화학 냉각기

ZLT 10℃~+60℃

냉각 용량
1kW~6kW
Heating power 2KW~7.5KW
온도 정확도
±0.1℃
전원
Single phase 220V/Three-phase380V/220V

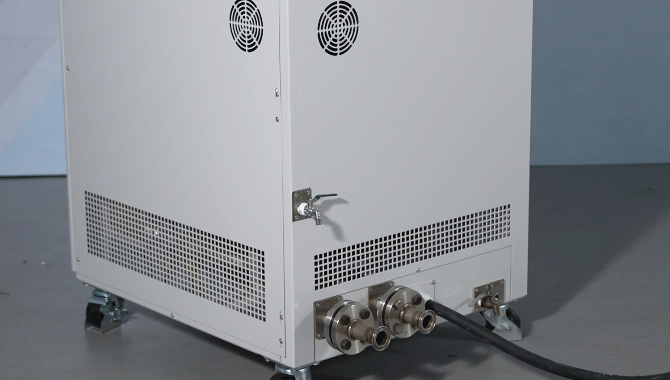

ZLT HED chemical chiller is a chemical medium dedicated circulating cooler designed for direct control of chemical medium temperature within the temperature range of 10℃to 60℃, with a temperature control accuracy of up to ±0.1℃, providing you with repeatable temperature control results.

ZLT HED chemical chiller has a variety of sizes and performance options, which can be flexibly customized according to needs

ZLT SERIES

10°C

최저

60°C

최고

±0.1°C

온도 제어 정확도


모델 ZLT-1HED
ZLT-1WHED
ZLT-3HED
ZLT-3WHED
ZLT-6HED
ZLT-6WHED
온도 범위 10 ℃~+60℃ Different media have different temperatures
온도 제어 정확도 ±0.1℃ ±0.1℃ ±0.1℃
냉각 용량 20℃ 1kW 3kW 6kW
2kW 3.5kW 7.5kW
Direct cooling method 압축기
Heat exchanger Silicon carbide
인터페이스 크기 G3/8 G3/8 G1/2
Water-cooled
@ 20℃
300L/H 800L/H 1500L/H
G3/8 G3/8 G1/2

Temperature feedback

온도 피드백 PT100(입구 온도, 출구 온도)


압축기

높은, 미쓰비시, 파나소닉 및 기타 압축기


통신 프로토콜

MODBUS RTU protocol RS485 interface



LNEYA never disappoints users!

장점 화학 냉각기

  • Flexibility
  • Efficiency
  • Corrosion resistance
  • User-Friendliness

chillers machine

circulation pump flow 30L/min 1.6bar~50L/min 2bar

cooling circulators

circulation pump flow 30L/min  1.6bar

temperature accuracy ±0.5℃

precision chillers

circulation pump flow 30L/min  1.6bar

temperature accuracy ±0.5℃

refrigerated circulators

circulation pump flow 30L/min  1.6bar

temperature accuracy ±0.5℃

closed loop chillers

circulation pump flow 30L/min  1.6bar

temperature accuracy ±0.5℃

LT-800 -18~30℃

circulation pump flow 10L/min  0.6bar

신뢰할 수 있는 이동식 냉각기 공장

당사는 자체 공장과 온도 제어 분야에서 20년 이상의 경험을 보유한 매우 강력한 냉각기 공급업체입니다.

Our excellent workshop technology, strong factory manufacturing capabilities, and technical support and maintenance service coverage determine: whether you need fast cooling, high efficiency and energy saving, environmental protection, or other application scenarios such as temperature control, flow control, pressure control, etc., we have rich experience to help you determine the chiller that best suits you.

With rich experience and worry-free pre-sales and after-sales services, customers can trust us to provide unparalleled help to maintain the optimal performance and service life of the chiller. This further promotes the overall success and efficiency of their operations.

글로벌 서비스

30,000명 이상의 고객에게 서비스를 제공했습니다.
20개국 이상에 수출되었습니다.

인증 특허

CE 인증, SGS 인증, ISO 인증을 획득했습니다.

판매 후 서비스

포괄적인 기술 교육을 제공합니다.
연중무휴 솔루션으로.

전문 팀

2010년에 설립되어 15년의 업계 경력을 보유하고 있습니다.
20%의 직원이 기술자입니다.

품질 관리

육안 검사.
성능 테스트.
전기 안전 테스트.

적합한 냉각기를 찾을 수 없나요? 또는 냉각기를 선택하는 방법을 모르시나요? 지금 바로 문의하여 냉각기 세부 정보 및 가격을 알아보세요.

Cascade refrigeration technology
Secondary supercooling technology
Frequency conversion technology
High and low temperature rapid heating and cooling technology

*
*
