LNEYA Thermo Refrigeration Co.,Ltd

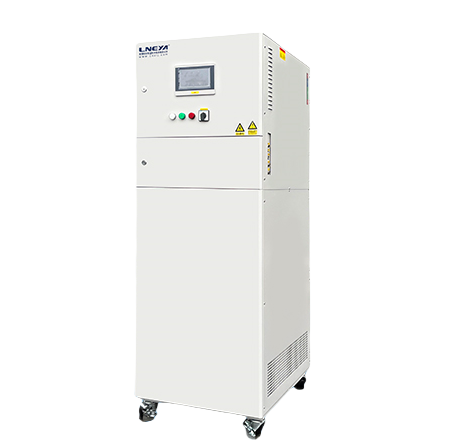

Deionized Water Chiller
2℃~20℃- Temperature Control Accuracy±0.5℃
- refrigerantR134A
- Cooling capacity5KW~25KW
Industry temperature control solution
DI Pure water Cooling unit
PLC control
7-inch screen
100% safety regulations
100% helium detection
Frequency control
Suitable for the production process of 2°℃~5°CDI water demand. Normal temperature Dl water enters the temperature control unit, and the target temperature D1 water is output, which solves the problem of easy freezing of water within 5°C.
| Model | LTZ-3DI | LTZ-6DI | LTZ-15WDI | |
| LTZ-3WDI | LTZ-6WDI | |||
| DI temperature range | 2 ℃～20℃ | 2℃～+20℃ | 2℃～+20℃ | |
| Temperature control accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | |
| Temperature feedback | Pt100 | Pt100 | Pt100 | |
| Cooling capacity 50HZ | 3℃ | 5kW | 10kW | 25kW |
| Compressor | Variable frequency compressor | |||
| Throttling method | Electronic expansion valve | |||
| DI heat exchanger | Plate heat exchanger | |||
| Input, Display | 7-inch color touch screen\PLC controller | |||
| Communication | Modbus RTU protocol RS485 interface, Ethernet TCP/IP protocol | |||
| Safety protection | It has self-diagnosis function; refrigerator overload protection; high and low voltage protection, overload relay, thermal protection device, exhaust and suction temperature protection, sensor fault protection and other safety protection functions. Anti-icing technology. | |||
| Refrigerant | R134A | |||
| Interface size | G1/2 | G3/4 | G3/4 | |
| Water-cooled type @20℃ | 1500L/H | 3000L/H | 4500L/H | |
| G1/2 | G3/4 | G3/4 | ||
| Water-cooled condenser | The condenser of the water-cooled equipment uses a plate heat exchanger, which requires water supply from a chiller or a closed cooling tower | |||
| Air-cooled condenser | Microchannel heat exchanger | Microchannel heat exchanger | Microchannel heat exchanger | |
| Power supply | 380V 50HZ can choose three-phase 220V 460V | |||
| DI contact pipe material | SUS304 | |||
| Casing material | Cold-rolled plate spraying (REL7035) | |||

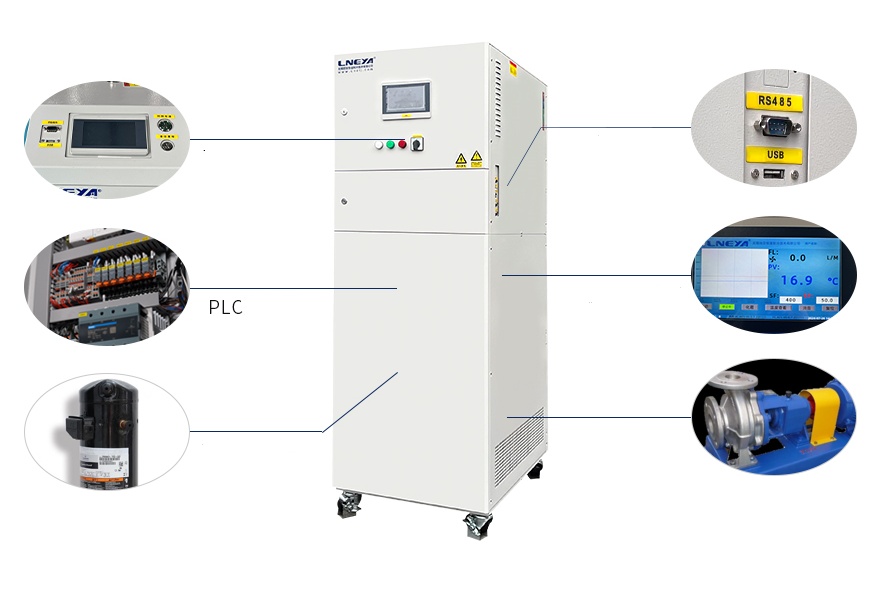

DETAIL ADVANTAGE,STRIVING FOR EXCELLENCE

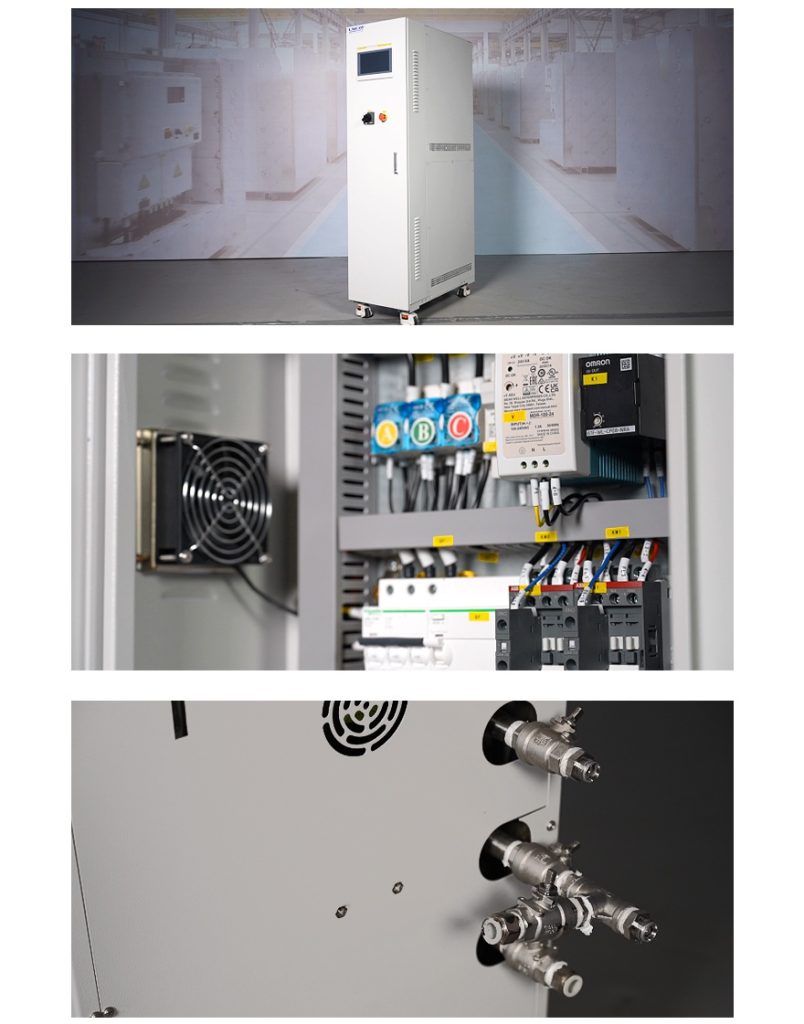

APPEARANCE DETAILS QUALITY CONTROL
