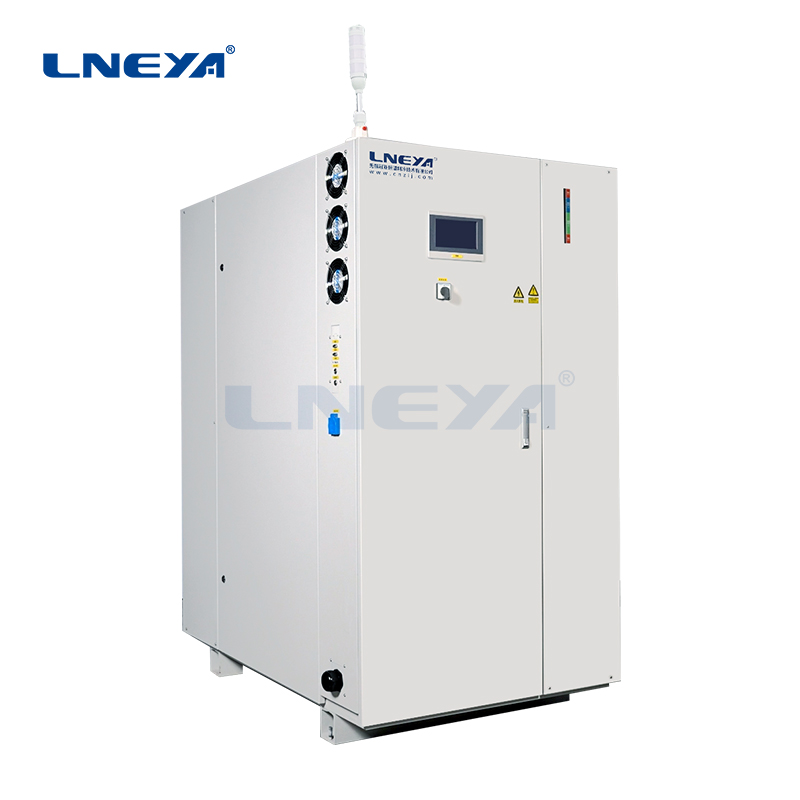

KRYZ Frequency conversion series

콘텐츠 숨기기

1 KRYZ Frequency conversion series

1.1 Air-cooling & Water-cooling

1.1.1 구성 세부 정보

1.2 다음 제품에도 관심이 있을 수 있습니다.

Control Temperature and Flow -40℃~100℃

냉각 용량0.5kW~10kW
난방 용량0.5kW~10kW
냉매R134A/R1234yf
무게115KG~300KG

kry

문의

Air-cooling & Water-cooling

구성 세부 정보

모델		KRYZ-475 KRYZ-475W	KRYZ-4A15W	KRYZ-4A25W
온도 범위		-40℃～+100℃
온도 제어 정확도		±0.1℃	±0.1℃	±0.1℃
온도 피드백		Pt100	Pt100	Pt100
온도 표시		0.01k	0.01k	0.01k
Flow output		1～25 L/min	1～25 L/min	1～25 L/min
About traffic description		When the temperature is below -30 degrees, the flow rate is controlled within 80% of the maximum value.
Flow control accuracy		±0.1 L/min	±0.1 L/min	±0.1 L/min
Pressure display		Using pressure sensor, the pressure is displayed on the touch screen, and the pressure control can be adjusted from 0.2bar to 2.5bar
Heating capacity kW		7.5	15	25
Cooling capacity kW	100℃	7.5	15	25
	20℃	7.5	15	25
	0℃	7.5	15	25
	-20℃	4.5	10	16
	-35℃	1.8	4	6.5
압축기		Inverter scroll compressor
스로틀링 방법		전자식 팽창 밸브
오일 분리기		Emerson
필터 건조기		댄포스
증발기		판형 열교환기
순환 펌프		Variable frequency magnetic drive pump
입력, 디스플레이		7-inch color touch screen, PLC controller
Programming		5 programs can be compiled, each program can compile 40 steps
Communications		Modbus RTU protocol RS485 interface, optional CAN communication bus, Ethernet TCP/IP protocol
보안 보호		It has self-diagnosis function; refrigerator overload protection; high pressure switch, overload relay, thermal protection device, low liquid level protection, high temperature protection, sensor fault protection and other safety protection functions.
시스템		The entire system is a fully closed system. There will be no water vapor at high temperatures and no absorption of moisture in the air at low temperatures. The system will not cause pressure to rise due to high temperatures during operation, and will automatically replenish heat transfer media at low temperatures.
냉매		R404A/R507C
인터페이스 크기		G3/4	G3/4	G3/4
Water cooled @25℃		2500L/H ZG3/4	4000L/H ZG1	6000L/H DN32
수냉식 콘덴서		The water equipment condenser of this product adopts plate heat exchanger, which requires water supply from chiller or low hardness tap water, and requires water purification filter
Air cooled condenser		마이크로 채널 열교환기	/	/
Power supply 380V50HZ		14kW	25kW	38kW
치수 cm		5585175	70100175	80120185
무게		280kg	360kg	620kg
Standard		Automatic antifreeze filling system, automatic liquid recovery system
선택 사항		220V 60HZ three-phase 400V 50HZ three-phase 440V 60HZ three-phase
선택 사항		Temperature extended to -40℃～+135℃
발언		The external circulation pipeline should have a diameter of DN15 or DN20. The pipeline needs to be well insulated, and high-temperature resistant rubber and plastic insulation pipes can be used.
셸 재질		Cold rolled sheet spraying (standard color 7035)

모델		KRYZ-475W/2T	KRYZ-4A15W/2T	KRYZ-4A25W/2T
온도 범위		-40℃～+100℃
온도 제어 정확도		±0.1℃	±0.1℃	±0.1℃
온도 피드백		Pt100	Pt100	Pt100
온도 표시		0.01k	0.01k	0.01k
Flow output		1～25 L/min	1～25 L/min	1～25 L/min
About traffic description		When the temperature is below -30 degrees, the flow rate is controlled within 80% of the maximum value.
Flow control accuracy		±0.1 L/min	±0.1 L/min	±0.1 L/min
Fluid output groups		2 groups	2 groups	2 groups
Pressure control per group		0.2bar～2.5bar	0.2bar～2.5bar	0.2bar～2.5bar
Flow Pressure Description		The device can control flow or pressure independently. Different solutions are required for simultaneous control (customization required)
Heating capacity kW		7.5*2	10*2	15*2
Cooling capacity kW	100℃	7.5*2	15*2	25*2
	20℃	7.5*2	15*2	25*2
	0℃	7.5*2	15*2	25*2
	-20℃	4.5*2	8.5*2	14*2
	-35℃	1.8*2	4*2	6.5*2
압축기		Inverter scroll compressor
스로틀링 방법		전자식 팽창 밸브
오일 분리기		Emerson
필터 건조기		댄포스
증발기		판형 열교환기
순환 펌프		Variable frequency magnetic drive pump
Flow rate, pressure		Electromagnetic flowmeter, pressure value 4～20mA
입력, 디스플레이		7-inch color touch screen, PLC controller
Communications		Modbus RTU protocol RS485 interface, optional CAN communication bus, Ethernet TCP/IP protocol
보안 보호		It has self-diagnosis function; refrigerator overload protection; high pressure switch, overload relay, thermal protection device, low liquid level protection, high temperature protection, sensor fault protection and other safety protection functions.
시스템		The entire system is a fully closed system. There will be no water vapor at high temperatures and no absorption of moisture in the air at low temperatures. The system will not cause pressure to rise due to high temperatures during operation, and will automatically replenish heat transfer media at low temperatures.
냉매		R404A/R507C/R125/N40 four refrigerants can be used
External output interface size		There are 2 sets of inlet and outlet ports, G3/4
Water cooled @25℃		4000L/H ZG1	8000L/H DN32	12000L/H DN40
수냉식 콘덴서		The water equipment condenser of this product adopts plate heat exchanger, which requires water supply from chiller or low hardness tap water, and requires water purification filter
치수 cm		80120185	100150185	200145205
Power supply 380V50HZ		28kW	45kW	70kW
무게		660KG	850kg	1350kg
Standard		Automatic antifreeze filling system, automatic liquid recovery system
선택 사항		220V 60HZ three-phase 460V 60HZ three-phase
선택 사항		Temperature extended to -40℃～+135℃
발언		The external circulation pipeline should have a diameter of DN15 or DN20. The pipeline needs to be well insulated, and high-temperature resistant rubber and plastic insulation pipes can be used.
셸 재질		Cold rolled sheet spraying (standard color 7035)

정격 시험 조건: 건구 온도 20℃, 습구 온도 16℃. 입구수 온도 20℃, 출구수 온도 25℃.

이 표의 데이터는 참고용입니다. 장치 명판의 매개변수를 참조하십시오.

특별한 비표준 맞춤형 서비스가 필요하면 저희에게 문의하세요.

The equipment can meet the direct cooling/direct heating for battery pack and vehicle testing and testing. This equipment is mainly used for cooling and heating capacity testing. It uses variable frequency compressor with adjustable output; variable frequency fan with adjustable speed and heat dissipation; with high-precision temperature, pressure, flow sensors and built-in software, it can calculate heat exchange capacity in real time, automatically recycle and refill refrigerators, etc. It can meet the needs of battery packs of different sizes.
