Fluorinated Fluid Recovery Equipment

Condensation and recovery of fluorinated liquid

Temperature range 15℃~35℃

Temperature accuracy ±1℃

high control accuracy, stable performance

Send us about your inquiry

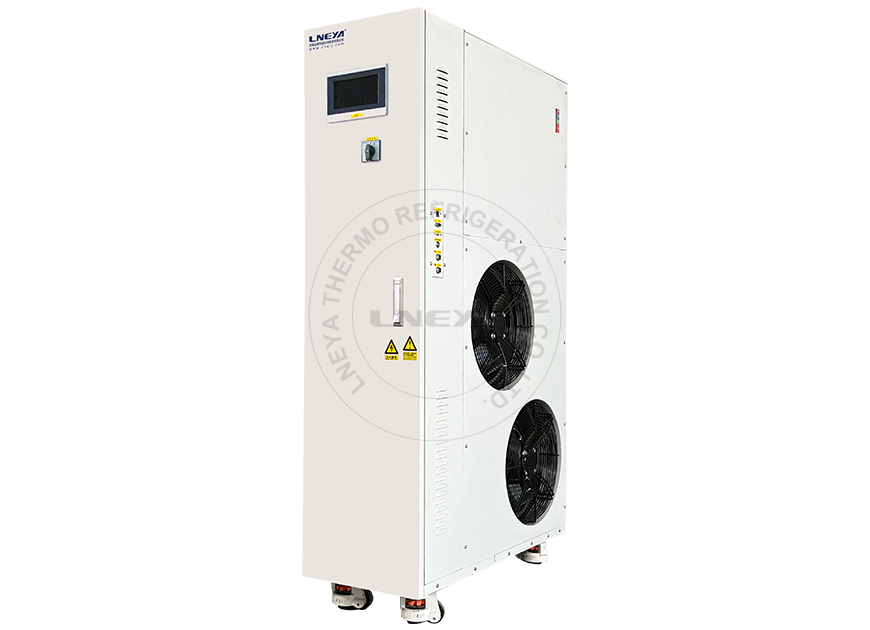

Fluorinated Fluid Recovery Unit (Image 1)

What is Fluorinated Fluid Recovery Equipment?

The fluorine recovery system adopts an integrated air-cooled design. It uses components such as brand-name compressors, condensers, and evaporators to form a refrigeration system to provide cold sources. The evaporator exchanges heat with the client’s fluorine recovery fluid circulation system, and after condensation, the fluorine is recovered.Help customers scientifically control the use of fluorinated fluids.

Key Benefits of Fluorinated Fluid Recovery Unit

The control system adopts the PLC and touch screen mode, which can display the environmental temperature;
It has power under-voltage and phase loss alarm;
The local touch screen of the unit can realize all temperature monitoring functions.
The touch screen can display the fluorine recovery status in real time, helping customers scientifically manage the use of fluorine.

Talk with LNEYA Engineer

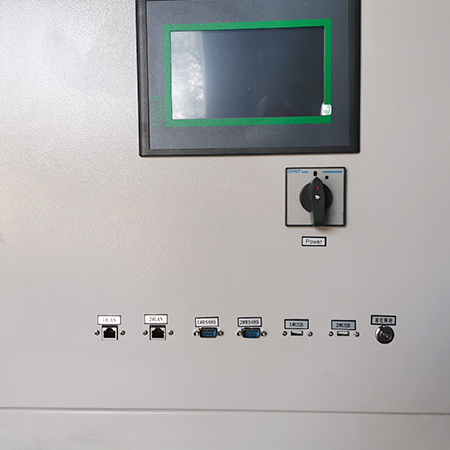

Fluorinated Fluid Recovery Unit (Image 2)

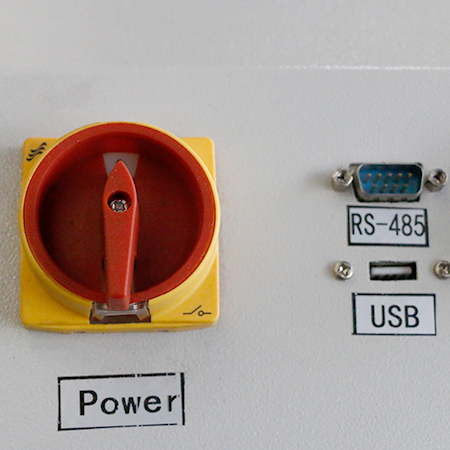

Fluorinated Fluid Recovery Unit (Image 3)

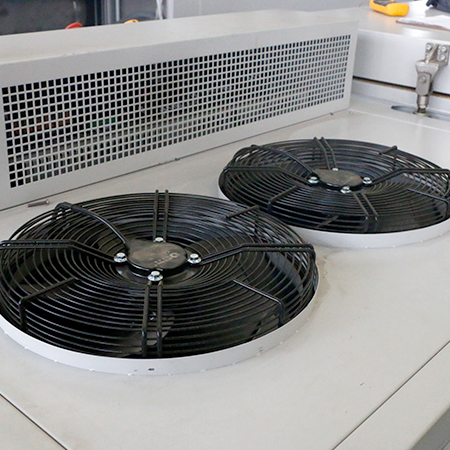

Fluorinated Fluid Recovery Unit (Image 4)

Selection of Fluorinated Fluid Recovery Unit Specifications

Model	FHY-HS01
Ambient temperature	15℃-35℃
Environmental humidity	Not greater than85%
Device Power Supply	Single-phase 220V/50Hz (customizable according to customer requirements)
Rated Power	1.8kW
Maximum Operating Current	10A
Cooling Method	Air cooling
Noise	Less than 70 dB
Temperature Control Accuracy of Refrigeration System	±1℃
Vacuum Pump Exhaust Volume	210L/min(Max)
Recovery Capacity (Gaseous)	450ml（ gas state）/H（Max）
Recovery Time	Less than 2 hours
Net Loss Rate of Fluorinated Liquid	Less than 10%
Cold Storage Tank Volume	5L/8L
Refrigerant	R404A/1.2kg
Types of Recoverable Fluorinated Liquid	3M-7100,3M-7200, Changru 7100, Changru 7200, and other volatile fluorinated liquids
Communication Method	RS232/RS485/USB
Inlet and Outlet Interfaces	ZG1/2
Circulating Recovery System	The whole system is a fully closed system, which does not absorb moisture from the air and does not volatilize the heat-conducting medium.
Operation Interface	Lneya Custom 7-inch Color Touchscreen with Temperature Curve Display and Excel Data Export
Dimensions	L：65cm；W：48cm；H：130cm Customizable to client needs

Why choose LNEYA ？

Fluorinated Fluid Recovery Unit (Image 5)

LNEYA sells CO2 chillers in multiple countries worldwide and has a customer base in various countries, including the United States, Europe, Southeast Asia, and South Africa. Therefore, LNEYA is also a refrigeration chiller supplier in Europe, Asia Pacific, etc. LNEYA’s refrigeration chillers are also considered industrial cooling equipment.
