저온 냉각기
Process Cooling System For Industrial Applications
FLTZ series -45℃~90℃ chiller
This low temperature chiller drops to -45°C -ready for any low temp chilling challenge.
Low Temperature SEMICONDUCTOR Chillers
Low temperature chillers often face issues like high fluid viscosity, evaporator icing, and difficult pumping.But our FLTZ low temp chiller offers a reliable cooling solution. Whether used indoors or outdoors, this process chiller provides stable cooling performance.
The chiller temperature depends on your needs—not the limits of the FLTZ. You can adjust freely between -45°C and 90°C.
If you have other requirements, we’ll take the time to fully understand your application and customize the ideal cooling solution for your industrial process.
Low Temperature Chillers Features
If you need a mini low temperature chiller, FLTZ fits your needs well. We can assure you it’s quite small among small chillers.
❯Air-cooled and water-cooled
❯High-precision Temperature control:±0.05℃
❯Expansion tank volume optional 10~35L
❯A variety of equipment sizes

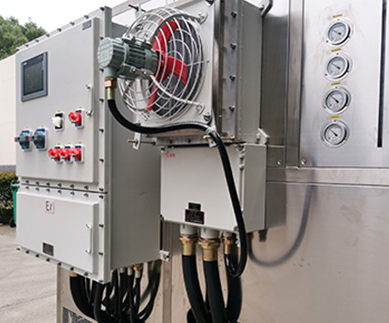

❯Explosion-proof(optional)
❯Variable Frequency Drive (VFD)
❯Low noise
❯Color touch screen
❯0.2~2.5ton chiller
❯Eco-friendly refrigerant
❯Low temperature coolant
❯Small size
Low Temperature Chillers Parameter
| 모델 | FLTZ-402/402W~FLTZ-145/415W | ||||||
| 온도 범위 | -45℃～90℃ | ||||||
| 온도 제어 정확도 | ±0.05℃（Steady state outlet temperature） | ||||||
| 흐름 제어 | 10～75L/min 5bar max | ||||||
| 난방 | Using compressor heating, prevent condenser frosting technology | ||||||
| Cooling capacity @-35℃ | 1kW~8kW | ||||||
| Internal circulating fluid volume | 4L~20L | ||||||
| 확장 탱크 용량 | 10L~35L | ||||||
| 냉매 | R404A | ||||||
| Refrigerating medium | Silicone oil, fluorinated liquid, glycol solution etc | ||||||
| 냉각수 흐름 @20℃ | 1.5m³/H~8m³/H | ||||||
| 치수 cm | 950*380*1055~1080*500*1500 | ||||||
Low Temperature Chillers Applications
Our low temperature chillers are designed for the following industrial applications:
❯Chemical
❯Pharmaceutical
❯Electronics
❯Semiconductor Manufacturing
❯New Energy
❯Battery Industry
❯Aerospace
❯And many more
