Vehicle chiller

KRY -20℃~100℃

Cooling capacity 25kW~60kW
순환 펌프 MAX
1~40L/min 0.2~2.5bar
Temperature accuracy ±0.3℃
Power AC380V/ AC460V

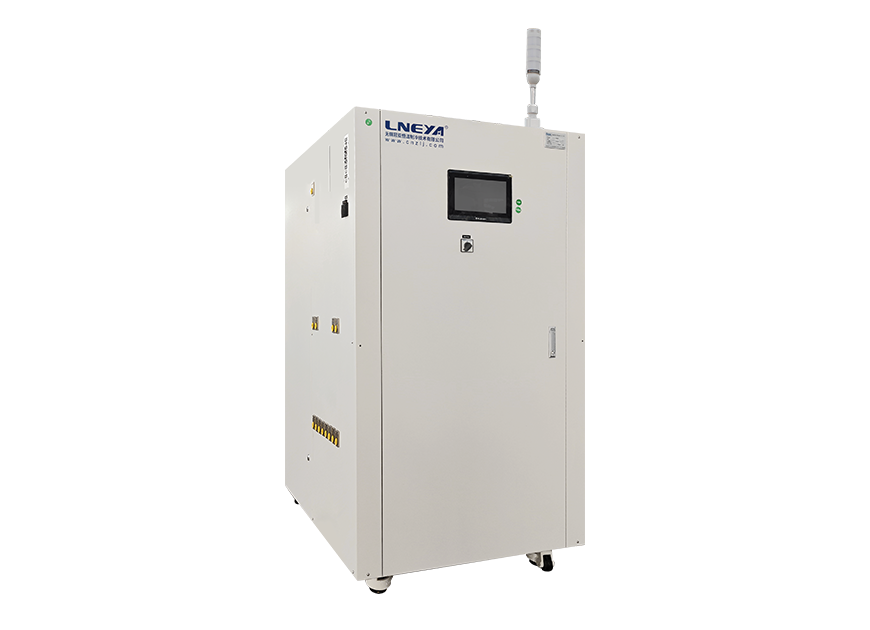

Vehicle chiller overview

This vehicle chiller is a low-temperature chiller with an operating temperature of -20℃~100℃ and can control the temperature change within ±0.3℃. It is suitable for performance testing of new energy vehicle batteries and components. This series has two types: 수냉식 그리고 공랭식. Almost all components can be customized.

-20°C

최저

100°C

최고

±0.3°C

온도 제어 정확도


Vehicle chiller parameters

모델 KRY-255
KRY-255W
KRY-275
KRY-275W
KRY-2A10
KRY-2A10W
KRY-2A15
KRY-2A15W
KRY-2A25
KRY-2A25W
KRY-2A38W
온도 범위  -20℃~+100℃
유량 출력 1~15 L/min 1~25 L/min 1~30 L/min 1~40 L/min 1~40 L/min 1~40 L/min
유량 정확도 ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min ±0.2 L/min
난방 용량 5.5kW 7.5kW 10kW 15kW 25kW 38kW
냉각 용량 100℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW
20℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW
0℃ 5.5kW 7.5kW 10kW 15kW 25kW 38kW
-15℃ 2.8kW 3.8kW 4.6kW 7kW 12kW 16kW
Water-cooled type W at 25℃ 1900L/H
ZG3/4
2500L/H
ZG3/4
3000L/H
ZG1
4000L/H
ZG1
6000L/H
DN32
9000L/H
DN40
전원 380V50HZ 11kW 14kW 19kW 23kW 31kW 45kW
치수 cm 55*100*175 55*100*175 70*100*175 80*120*185 100*150*185 100*150*185

Vehicle Chiller애플리케이션

The vehicle chiller is suitable for achieving temperature control during the component testing phase of new energy vehicles, especially the temperature control of the battery package.

KRY -40℃~100℃
battery chillers

KRYZ -40℃~100℃
부동액 쿨러

KRY -40℃~100℃ Multi-channel
액체 냉각 냉각기

lneya – chiller manufacturer in china

글로벌 서비스

30,000 +customers.
20+ countries.

인증 특허

CE ,SGS, ISO certification.

판매 후 서비스

24/7 solutions.

전문 팀

15+ years experience.

품질 관리

Quality test.

FAQ about Vehicle Chiller

Our equipment is equipped with a multi-functional alarm system. When a fault occurs, it will give a direct beeping alarm. The cause of the fault will be displayed on the touch screen, which is convenient for maintenance.

To enhance the operational convenience of the equipment and minimize the hassle during use, KRY series automotive chiller is equipped with a built-in self-priming pump. All you need to do is place the refrigerant beside the equipment, connect the pipe to the filling port, and turn on the self-priming pump to complete the filling process. You can also manually add refrigerant through the liquid filling port. For the recovery of refrigerant, this equipment is specially designed with the connection of external pipelines. The refrigerant can be self-suctioned and recovered by the built-in self-priming pump or recovered by an external air source.

*
*
