1 KRYO 0℃~160℃
1.1 Cooling and heating temperature and flow control
1.2 The object under test is connected to a test platform adapterThe component is cooled and heated by ethylene glycol water solution-40’C~100°C (expandable to 150°C)
1.3 설명
1.4 제품 추천
Oil Cooling Chiller
새로운 에너지 차량 냉각기 Vehicle/Battery Water Chillers
  • 온도 정확도±0.3℃
  • Flow Accuracy±0.2L/min
  • 냉각 용량12kW~38kW
  • Heating Capacity15kW~38kW
  • 유량 출력1～40 L/min
  • CoolantOil
문의

Cooling and heating temperature and flow control

The object under test is connected to a test platform adapter
The component is cooled and heated by ethylene glycol water solution
-40’C~100°C (expandable to 150°C)

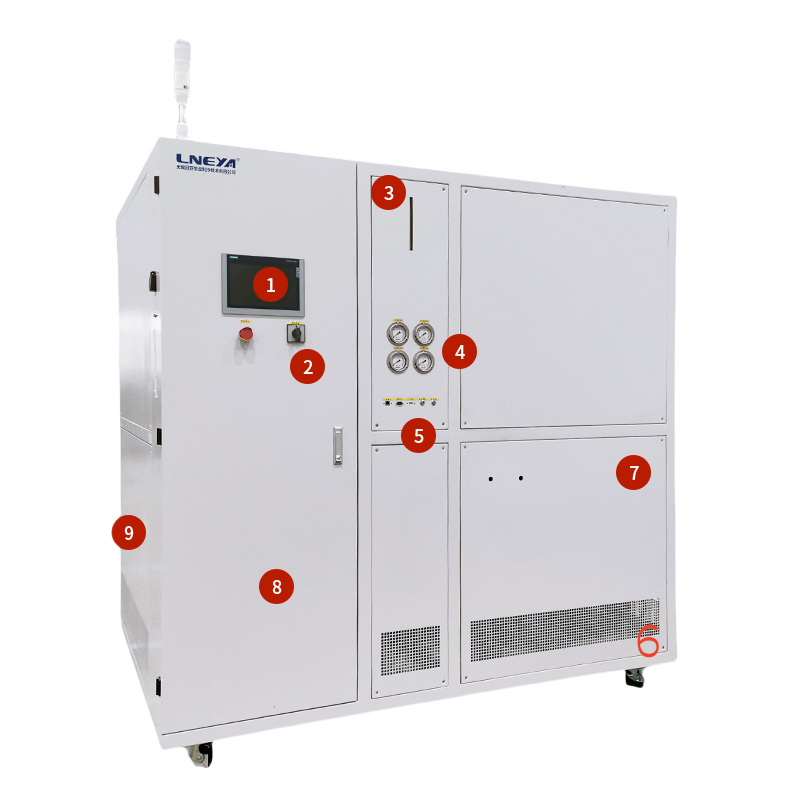

  • Color touch screen
  • Equipment power switch
  • Liquid level light
  • High and low pressure gauges
  • Communication interface
  • Four-way casters
  • Circulation pipeline
  • Electrical cabinet
  • Compressor circulation pump



KRYO SERIES A15W A25W A38W A15W2S A25W2S A38W2S
온도 범위 0℃ ~ +160℃ Different viscosity oils have different temperature ranges
온도 제어 accuracy ±0.3℃
온도 피드백 PT100
흐름 제어 2L/min~20L/min, one in and one out, in and out control linkage 2L/min~15L/min Two outputs, one input Flow control linkage
Flow accuracy ±0.2L/min
압력 제어 0.2bar~2.5bar
Heating capacity kW 15 25 38 15 25 38
Cooling capacity kW 125℃ 15 25 38 15 25 38
20℃ 12 20 30 12 20 30
압축기 Emerson Copeland Scroll Flexible Compressor/Japanese Scroll Flexible Compressor
스로틀링 방법 전자식 팽창 밸브
증발기 판형 열교환기
순환 펌프 Gear Pumps
Flow regulation Inverter vector control
입력, 디스플레이 7인치 컬러 터치 스크린/PLC 컨트롤러
Communications CAN communication
냉매 R410A
Coolant Oil
Liquid inlet and outlet G3/4
냉각수 @20℃ 3000L/H 4200L/H 6200L/H 3000L/H 4200L/H 6200L/H
냉각수 연결 G3/4 G3/4 G1 G3/4 G3/4 G1
power supply 380V 50HZ three-phase five-wire
차단기 50A 80A 125A 50A 80A 125A
External tooling External oil return tooling size 600×850×600
If the external oil return fixture is selected, the fixture needs to be installed under the test motor.

설명


전원 배터리 충전 관리를 위해 영구 자석 동기 모터, 스위치 릴럭턴스 모터, 비동기 모터 및 그 컨트롤러를 테스트하기위한 정밀 온도 제어 장치는 액정 컨트롤러 패널을 통해 로컬 + 원격 제어 모드를 실현할 수 있습니다;



자동 고장 보호 기능으로 해당 신호를 출력하여 장비의 안전을 보장 할 수 있습니다. 주요 부품은 모두 국제 브랜드, 품질 보증, 표면의 고압 정전기 스프레이 처리이며 특정 요구에 따라 보조 장비를 추가 할 수 있습니다.
