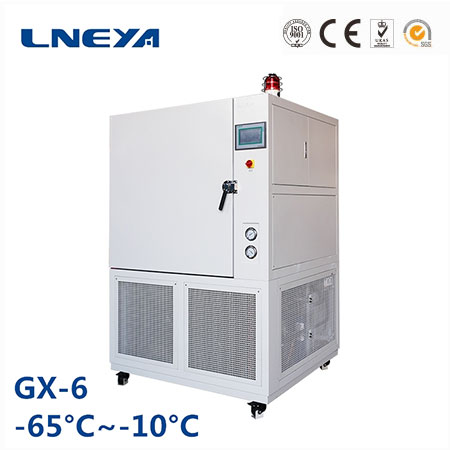

GX -65℃~-10℃
직립형 산업용 냉장고 또는 수평형 산업용 냉장고- 냉각 성능 @-60℃1kW~4kW
- 전력 범위5.5kW~19kW
- 저장 용량280L~1600L
- 온도 변동±2℃
- 냉매R404A/R23
- 무게380KG~780KG
- 원산지중국
제품 데이터 다운로드
Suitable for use in mechanical production workshop environments
Applied in ultra-low temperature testing of large-scale equipment
Compressor automatic cascading low temperature -150 ° C

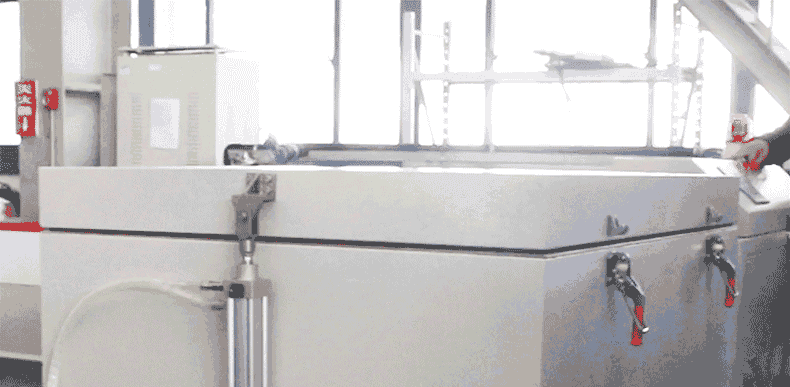

![](https://www.lneya.com/wp-content/uploads/2024/04/工业冰箱.gif)
구성 세부 정보
모델 | GY-A228N | GY-A250N | GY-A2A10N | GY-A350N | GY-A3A10N | GY-A550N | GY-A5A10N |
볼륨 | 280L | 500L | 1000L | 500L | 1000L | 500L | 1000L |
Inner dimension | 800*600*600 | 1200*650*650 | 1550*800*750 | 1200*650*650 | 1550*800*750 | 1200*650*650 | 1550*800*750 |
유형 | (세로) | ||||||
Capability carrying | 150KG | 220KG | 300KG | 220KG | 300KG | 220KG | 300KG |
Designed bearing capacity is two times of the standard one, (refrigeration system is designed according to the standard capacity when target artifact weight is greater than the standard capacity, the cooling rate will decrease) |
|||||||
Temp. range | -120℃~20℃ | -120℃~20℃ | -120℃~20℃ | -135℃~0℃ | -135℃~0℃ | -150℃~0℃ | -150℃~0℃ |
Cooling capacity | 0.7kw -110℃ | 1 kw -110℃ | 2 kw -110℃ | 1kw -125℃ | 2 kw -125℃ | 1 kw -140℃ | 2kw -140℃ |
Temp. accuracy | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
Heating power | 2kw | 3kw | 5kw | 3kw | 5kw | 3kw | 5kw |
Nickel-chromium alloy electric heating heater, the controller has double safety protection, with independent temperature limiter protection. |
|||||||
Cooling rate | Ambient temperature of 25℃, no-load,(from 0℃to -110℃ about 1 .5 hour; | ||||||
from 0℃ to -140℃ about 2 hours, cooling rate will be a little different for ambient temperature changes. | |||||||
컨트롤러 | PLC multifunctional controller | ||||||

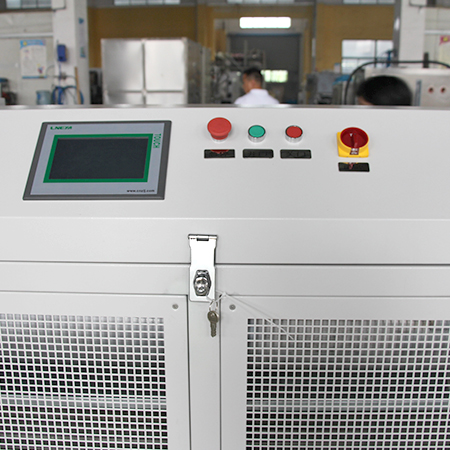

Operation panel | 7-inch color touch screen, display set temperature, measured temperature. | ||||||

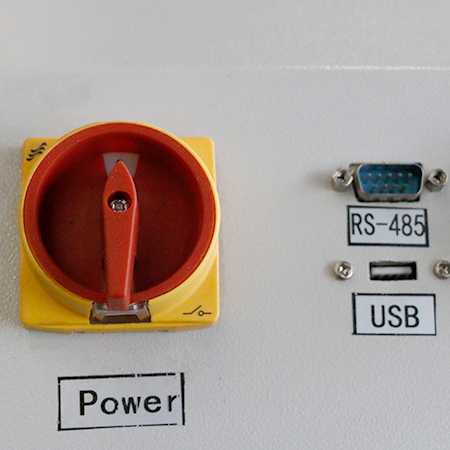

Temp. record | Temperature curve and fault record, U-disk data export, excel format. | ||||||
압축기 | Emerson Copeland, adopt cascade refrigeration technology | ||||||
Intermediate heat 교환기 |
Plate heat exchanger | ||||||
Dry filter | Emerson | ||||||
Expansion valve | Electronic expansion valve | ||||||
증발기 | Copper-tube with aluminum-fin | ||||||
Cooling Type | Air-cooled with water-cooled auxiliary functions (Ensure good cooling capacity when temp. above 30℃) | ||||||
Means of insulation | Polyurethane foam insulation, thermal insulation layer 150 mm, with embedded FIR boards | ||||||
Safety Protection | Self-diagnosis function; Phase sequence phase failure protection; leakage protector; cooling unit overload protection; high and low-pressure switch, overload relay, thermal protection, high-temperature protection and temperature fault protection. |
||||||
Case material | Outside is cold rolled steel painting, internal is SUS304 wire drawing board. | ||||||
냉매 | Mix Refrigerant from LNEYA | ||||||
차원 | 2200*1150 *1150 |
2700*1200 *1200 |
3100*1300 *1250 |
2900*1200 *1200 |
3200*1300 *1250 |
3000*1200 *1200 |
3300*1300 *1250 |
Power 380V 50HZ | 12KW MAX | 16.5KW MAX | 20KW MAX | 18KW MAX | 25KW MAX | 23KW MAX | 30KW MAX |
무게 | 570kg | 680kg | 850kg | 750kg | 900kg | 800kg | 1250kg |
선택 사항 | High temperature reaches 80℃ and temperature accuracy is ±0.5℃;the input power will be changed. | ||||||
선택 사항 | Temp. accuracy ±0.5℃ | ||||||
선택 사항 | Cooling and heating program controlled, meet cold treatment process requirements(can set 5 programs, each program can edit 40 steps.) |
||||||
선택 사항 | Interior door, reduce cooling capacity lost when picking small workpieces (temperature below 60℃ optional) | ||||||
선택 사항 | Outside SUS304 wire drawing board case | ||||||
선택 사항 | Diameter 50mm cable hole | ||||||
선택 사항 | Electric heating vacuum glass observation window (with lighting) 200mm*300mm | ||||||
선택 사항 | Low temperature automatic defrost (can be once per hour or use manual button to defrost), ensure it can work at low temperature for a long time even the door is open and close frequently) |
제품 설명
초저온 냉장고는 냉동 보존 상자, 극저온 냉장고, 냉동 보존 상자 등으로도 알려져 있으며, 일반적인 저온 냉장고는 -65 ℃ ~ -10 ℃입니다.
초저온 냉장고의 냉동 시스템은 기본적으로 캐스케이드 냉동의 작동 원리를 채택하고 고온 및 저온 압축기로 완전히 밀폐 된 압축기 2 개가 장착되어 있습니다. 저온 증발기의 구리 튜브는 코일 형태로 내부 상자 외부에 직접 부착되고 코일과 틈새의 상자 벽 사이에 열전달 시멘트 블록이 부착되어 열교환 효과를 높입니다. 응축식 증발기는 실 모양의 구리 튜브 4개로 구성된 쉘 튜브 구조로 역류 열교환이 이루어집니다.
극저온 단계 시스템에는 가스 열교환기가 장착되어 증발기에서 나오는 저압 가스가 응축기 증발기 이전의 고압 가스와 열교환되도록하여 응축 증발기의 열 부하를 줄일뿐만 아니라 열을 최대한 활용하며 왁스 제거 필터가 가장 일반적이며 필터의 주요 목적은 시스템의 "오일 막힘"가능성을 줄이기 위해 동결 오일에서 파라핀을 제거하는 것입니다.
또한 다양한 용도에 따라 초저온 냉장고에 일부 액세서리를 장착할 수도 있습니다. 예를 들어, 온도 재측정
작동 매개 변수의 영구 기록을 위해 코더; 특수한 상황에서는 이산화탄소 백업 시스템을 사용하여 가스 보존 환경이 정상 상태를 유지하도록 보장하고 저압에서 압축기의 정상적인 작동을 보장하기 위해 전압 부스터를 선택합니다.
REQUEST A QUOTE
![메시지를 보내주시면 최대한 빨리 연락드리겠습니다.](https://www.lneya.com/wp-content/uploads/2023/05/2-74.jpg)
다음 제품에도 관심이 있을 수 있습니다.

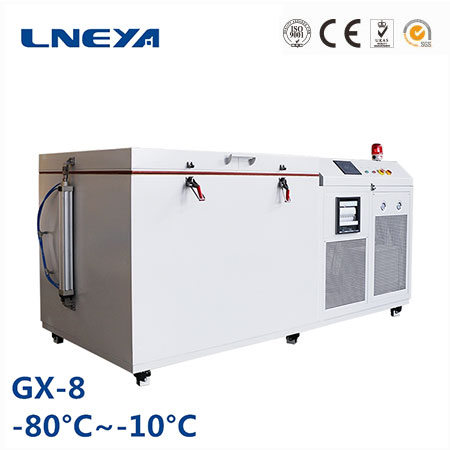

초저온 냉동고 -80℃~-10℃
냉각 전력 @-75℃ 1kW~4kW 전력 범위 7kW~21kW 저장 용량 280L~1600L

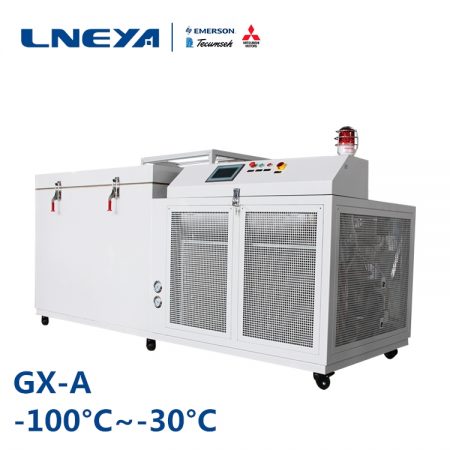

산업용 냉장고 -100℃ ~ -30℃
냉각 전력 @-90℃ 0.7kW~3kW 전력 범위 9kW~30kW 저장 용량 280L~1600L

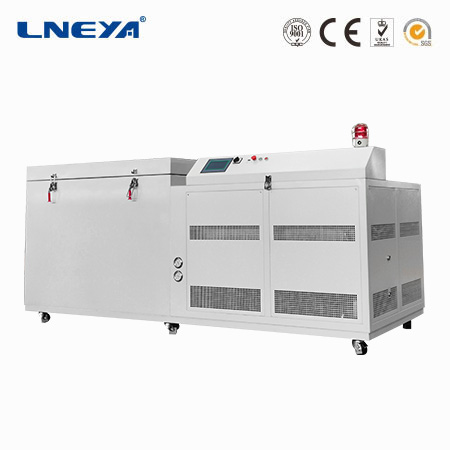

극저온 냉장고 -150℃ ~ -20℃
