Model	GD-1100-B2-GYZ GD-1100-B2-GYZW	GD-1100-C1-GYZ GD-1100-C1-GYZW	GD-1100-C2-GYZ GD-1100-C2-GYZW	GD-1100-D1-GYZ GD-1100-D1-GYZW	GD-1100-E1-GYZ GD-1100-E1-GYZW
Effective volume	1100L	1100L	1100L	1100L	1100L
Inner container size cm	90*100*125	90*100*125	90*100*125	90*100*125	90*100*125
Temperature range	-65℃～-35℃	-80℃～-50℃	-100℃～-70℃	-120℃～-90℃	-150℃～-110℃
Control accuracy	Within the controllable temperature range of ± 0.5 ℃
Bearing capacity	350kg Other load-bearing qualities can be customized
Cooling capacity	No load, cool down to 25 degrees Celsius at room temperature (minimum temperature setting+10 ℃) for about 1 hour
Temp uniformity	Within ± 2 ℃
Open mode	Side opening door, double layered interior and exterior door design, opening the exterior door automatically closes the circulating fan
Evaporator	Electrophoretic copper tube with aluminum fins
Compressor	Emerson Valley Wheel Vortex Compressor, Carlisle Semi Enclosed Piston Compressor

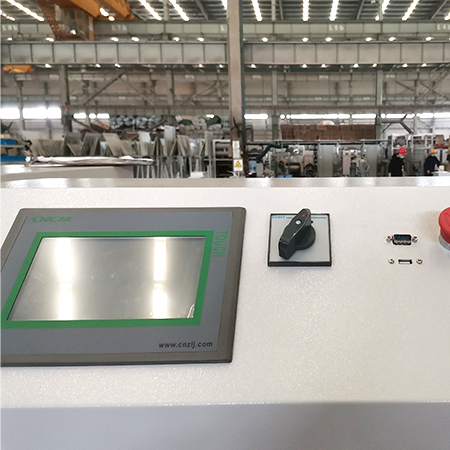

Controller	Programmable PLC controller, 7-inch touch screen
Safety protection	Having self diagnostic function; Refrigerator overload protection; Multiple safety protection functions such as high and low pressure sensors, overload relays, and thermal protection devices; Pressure balanced design ensures smooth door opening
Data record	Temperature curve recording, USB data export in Excel format, fault record
Defrosting function	Can set timed defrosting function
Insulation layer	150mm	150mm	150mm	200mm	200mm
	Polyurethane foam secondary foaming+FIR board
Refrigerant	R404A R23	R404A R23	Mixed refrigerant 1	Mixed refrigerant 2	Mixed refrigerant 3
Material quality	Inner liner SUS304 shell cold-rolled plate spray coated with RAL7035
Refrigeration components	Famous brands are used for condenser, plate heat exchanger, oil separator, pressure sensor, temperature sensor, drying filter, electronic expansion valve, gas-liquid separator, sight glass, frequency converter, etc
Dimension	120*235*170	120*235*170	120*235*170	130*250*180	130*250*180
Power supply	400V 50HZ
	Other sizes and load-bearing capacity can be customized

If the low temperature refrigeration system has been frosted, believing that some enterprises have met, then how should we deal with such situation? Are there any methods can solve this problem. Today, let’s know something about it with Guanya refrigeration company.

1. First turn off the suction valve of the low temperature box compressor and unload to the minimum number of cylinders to operate.

2. Then close the liquid supply valve of the intermediate cooler and close the suction valve of the small high pressure cylinder.

3. After the high pressure cylinder is returned to normal, open the suction valve of the large and low pressure cylinder again. When  the normal operation has been resumed, then supply the liquid to the intermediate cooler.

4. If the frosting of high pressure cylinder is severe, the operation of the unit must be stopped.

5. Drain the intermediate cooler.

6. The cooling water treatment is the same as the single-stage treatment.

Do you remember the above way of processing? If you still have some questions, please contact the customer service on the official website of Guanya refrigeration company immediately, and solve the problem in time!

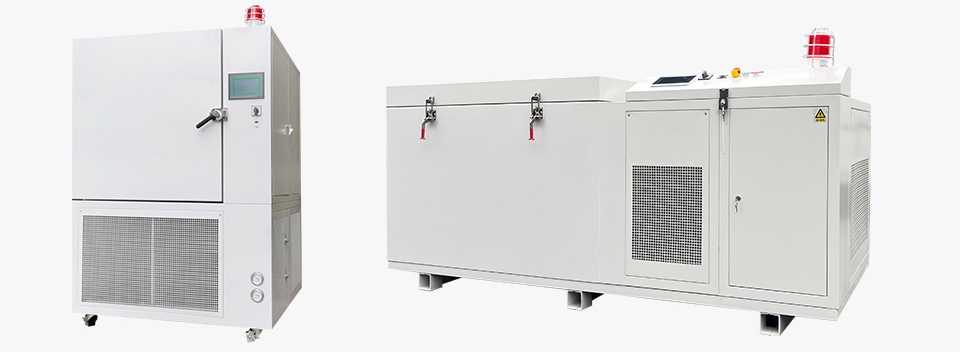

Appearance

Depending on the on-site environment, you can choose to open the door upwards or sideways, with capacities ranging from 280 to 1600L.

Applications

Mainly used in industrial cold treatment, for cold shrinkage of copper sleeves, bearings, precision mechanical assembly, and ultra-low temperature testing.
