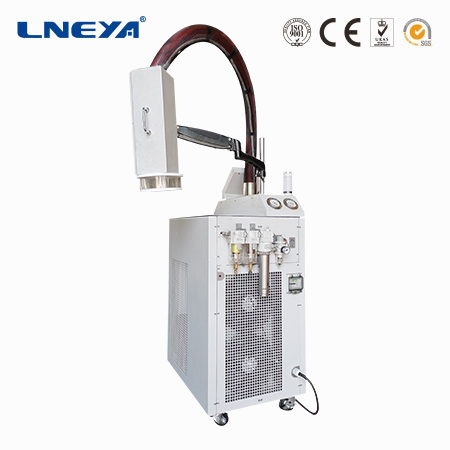

Temperature Forcing System/ Thermal Stream Head
AES -115℃~225℃- Time switching10s~20s
- 냉매R404A/R23/R14/R508B
- 냉각수0.6m³/h~3m³/h
- 전력 범위3.7kW~7.5kW
제품 데이터 다운로드
TEMP SHOCK TEST AIRFLOW HOOD
1/CHARACTERISTIC ANALYSIS
2/LOOP TEST
3/IMPACT TEST
4/FAILURE ANALYSIS
Suitable for IC testing of all kinds of semiconductor chips,flash memory Flash/EMMC, PCB circuit boards, opticalcommunications,electronic industries, etc.
세부 매개 변수
모델 | AES-4535 | AES-6035 | AES-8035 | AES-A1035W | AES-A1235W | |
AES-4535W | AES-6035W | AES-8035W | ||||
Temp. Range | -45℃~225℃ | -60℃~225℃ | -80℃~225℃ | -100℃~225℃ | -120℃~225℃ | |
난방 전력 | 3.5kW | 3.5kW | 3.5kW | 4.5kW | 4.5kW | |
Temp. Control Accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ | |
Temp. Conversion Time | -25℃ to 150℃ Approximately 10S 150℃ to -25℃ Approximately 20s |
-45℃ to 150℃ Approximately 10S 150℃to -45℃ Approximately 20s |
-55℃ to 150℃ Approximately 10S 150℃to -55℃ Approximately 15s |
-70℃ to 150℃ Approximately 10S 150 ℃to -70℃ Approximately 20s |
-80℃ to 150℃ Approximately 11S 150℃to -80℃ Approximately 20s |
|
Air Requirement | Air Cleaner<5um | |||||
Air Oil Content:<0.1ppm | ||||||
Air Temp&Humidity:5℃~32℃ 0~50%RH | ||||||
Air Handing Capacity | 7m3/h ~ 25m3/h Pressure 5bar~7.6bar | |||||
System Pressure Dispiay | 냉동 시스템의 압력은 압력 게이지(고압, 저압)로 구현됩니다; | |||||
순환계의 압력은 압력 센서로 감지하여 터치 스크린에 표시합니다. | ||||||
컨트롤러 | Siemens PLC, Fuzzy PID Control algorithm. | |||||
Temp. Control | Control of outlet temperature | |||||
프로그래밍 가능 | 5개의 절차를 개발할 수 있으며, 각 프로그램은 40단계로 구성할 수 있습니다. | |||||
통신 프로토콜 | Ethernet Interface TCP/IP Protocol. | |||||
Internal Temp. Feedback | Equipment outlet temperature, refrigeration system condensation temperature, ambient temperature, compressor suction temperature, cooling water temperature (water cooling equipment is configured) . | |||||
Temp. Feedback | T Temperature Sensor | |||||
압축 엔진 | Taikang,France | Taikang,France | Taikang,France | Italy Duling | Italy Duling | |
증발량계 | Double-pipe (heat) Exchanger | |||||
Calorifier | Flanged Barrel Heater | |||||
냉장 액세서리 | Danfoss / Emerson fittings (dry filters, oil separators, high and low pressure protectors, expansion valves, solenoid valves). | |||||
조작 패널 | LNEYA 맞춤형 7인치 컬러 터치 스크린, 온도 곡선 디스플레이\ EXCEL 데이터 내보내기 | |||||
안전 보호 | 자가 진단 기능, 위상 시퀀스 위상 차단기, 냉동고 과부하 보호, 고전압 압력 스위치, 과부하 릴레이, 열 보호 장치 및 기타 안전 보호 기능이 있습니다. | |||||
Cryogen | Topsubmixed Refrigerant | |||||
External Insulation Hose | 8m DN32 fast coupling clamp for easy outgoing insulation hose | |||||
냉매 | R404A | R404A/R23 | R404A/R508B | R404A/R23/R14 | R404A/R23/R14 | |
Shape Dimension (Wind)cm | 54*69*132 | 54*69*132 | 75*73*133 | 80*120*185 | 100*150*185 | |
Shape Size (Water)cm | 54*69*132 | 54*69*132 | 75*73*133 | 70*100*175 | 80*120*185 | |
Air-Cooled Type | Copper tube aluminum fin condensation mode, upper and out type, condensing fan using Germany EBM axial flow fan. | |||||
Water-Cooled Type W | W형은 수냉식입니다. | |||||
Water-Cooled Condenser | Sleeve type heat exchanger (Paris/ Shen’s) | |||||
Cooling Water Quantity At 25℃ | 0.6m3/h | 1.2m3/h | 1.6m3/h | 2.6m3/h | 3m3/h | |
소스 380V 50HZ | 3.7kW max | 최대 5kW | 최대 5kW | 6.8kW max | 최대 7.5kW | |
출처 | 사용자 정의 가능한 460V 60HZN 220V 60HZ 3상 | |||||
셸 재질 | Cold rolled sheet spray (Standard Colour 7035). | |||||
Temp. Spread | High Temperature To +300℃ |
제품 설명
The output airflow cover of the testing machine will be covered bythe test product to form a test chamber with a relatively closedspace. The high or low temp airflow output by the testing machinewill cause the surface temp of the test product to change drastically,thus completing the corresponding high and low temp impact test.
It can isolate one lC or original component among many componentsand separately perform high and low tempimpact withoutaffecting other surrounding devices. Compared with the traditionalthermal shock test box, the temp impact rate is faster.
Provides accurate and fast ambient temperature (-120 °C ~ +300 °C) for chips, modules, integrated circuit boards, and electronic components. It is an indispensable instrument for product electrical performance testing, failure analysis, and reliability assessment.
Widely used in semiconductor companies, aerospace, optical communications, universities, research institutes and other fields.
Compared to the traditional thermostat, there are several features:
Temperature range: -120 °C ~ +300 °C;
The temperature rise and fall is very fast, -55 °C ~ 150 °C < 10 seconds;
Temperature control accuracy: ±1 °C;
Temperature setting capability: ±0.1 °C;
Temperature display capability: ±0.1 °C;
Maximum air flow: 25m3/h;
Real-time monitoring of the real temperature of the IC under test to achieve closed-loop feedback and adjust the gas temperature in real time;
The temperature rise and fall time is controllable, programmable operation, manual operation and remote control.
PRODUCT ADVANTAGES

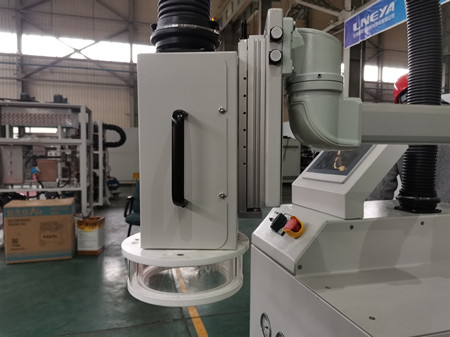

1/LCD 2/insulation hose 3/Mechanical arm 4/Heating head 5/Heat hood
1/Oil mist separator 2/Micro mist separator 3/Air dryer 4/Pressure reducing valve
