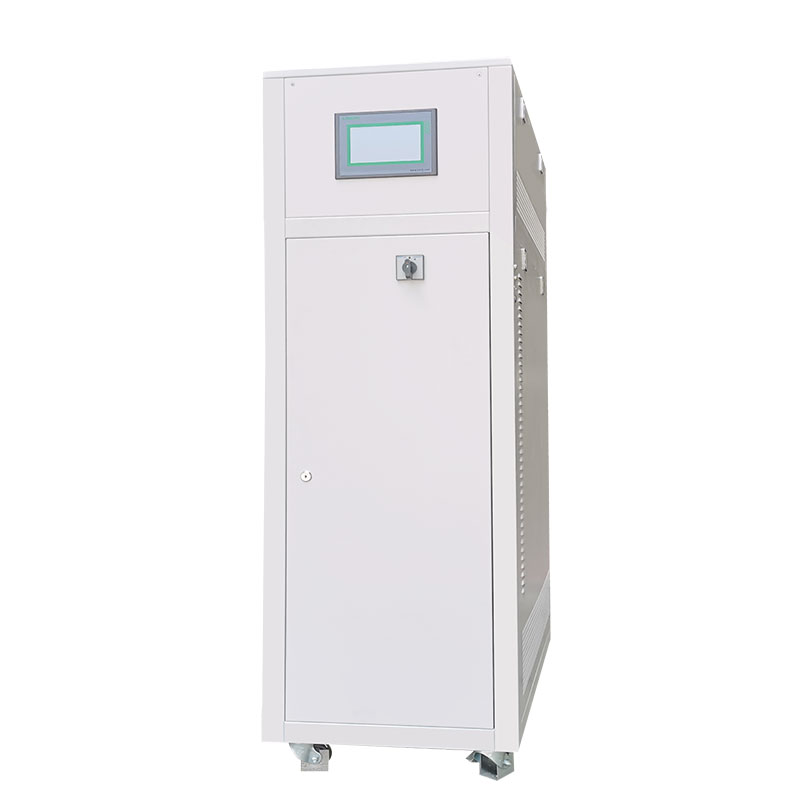

KRY direct cooling heating system
- 냉각 용량0.5kW~10kW
- 난방 용량0.5kW~10kW
- 냉매R134A/R1234yf
- 무게115KG~300KG
Air-cooling & Water-cooling
구성 세부 정보
모델 | KRYZ-5W-ZLH | KRYZ-5W-ZL |
KRYZ-5-ZLH | KRYZ-5-ZL | |
Cooling capacity kW | 0.5~10 | 0.5~10 |
Heating capacity kW | 0.5~10 | |
Subcooling | Cooling 0k~6K | Cooling 0k~6K |
Heating 0k~6k. Low temperature environment 6k~20k | ||
Superheat | Cooling 3k~20k | Refrigeration 3k~20k |
Heating 3k~20k | ||
Condensing pressure control accuracy | Better than ±50kpa | Better than ±50kpa |
Inspiratory pressure | 300kpa~600kpa ±10kpa | 300kpa~600kpa ±10kpa |
Battery pack test environment temperature | -40℃ ~ +50℃ | -40℃ ~ +50℃ |
Refrigerant flow metering | Flow meter | Flowmeter |
냉매 | R134A or R1234yf | R134A or R1234yf |
냉각 방법 | Air-cooled variable frequency fan | Air cooling variable frequency fan |
압축기 | Brand variable frequency compressor | Brand variable frequency compressor |
10-inch touch screen | Real-time display of various temperatures, subcooling, superheat, cooling and heat exchange capacity, pressure, flow, current, voltage, key parameter curve recording | Real-time display of various temperatures, subcooling, superheat, cooling and heat exchange capacity, pressure, flow, current, voltage, and key parameter curve records |
컨트롤러 | Programmable PLC | Programmable PLC |
Communications | CAN | CAN |
전원 공급 장치 | 380V 50HZ or 460V 60HZ | 380V 50HZ or 460V 60HZ |
정격 시험 조건: 건구 온도 20℃, 습구 온도 16℃. 입구수 온도 20℃, 출구수 온도 25℃.
이 표의 데이터는 참고용입니다. 장치 명판의 매개변수를 참조하십시오.
특별한 비표준 맞춤형 서비스가 필요하면 저희에게 문의하세요.

The equipment can meet the direct cooling/direct heating for battery pack and vehicle testing and testing. This equipment is mainly used for cooling and heating capacity testing. It uses variable frequency compressor with adjustable output; variable frequency fan with adjustable speed and heat dissipation; with high-precision temperature, pressure, flow sensors and built-in software, it can calculate heat exchange capacity in real time, automatically recycle and refill refrigerators, etc. It can meet the needs of battery packs of different sizes.
