CHILLER CIRCULATOR
ZLTZ High-efficiency heat exchange unit- Cooling capacity2.6kW~16kW
- RefrigerantR134A/R404A/R507C /R448
- Temp control accuracy±0.3℃
- Cooling TypeAir-cooling & Water-cooling
Suitable for temperature control applications such as microchannelreactors, plate heat exchangers, cold plates, heat sink plates, andtubular reactors with small heat exchange areas, large refrigerationcapacities, and small temperature differences; The equipment canautomatically recycle the thermal conductive medium;
ZLTZ -10℃~25℃
| MODEL | ZLTZ-3 | ZLTZ-6 | ZLTZ-10 | ZLTZ-15W | ZLTZ-20W | ZLTZ-30W | ZLTZ-40W | ZLTZ-75W | ZLTZ-100W | ZLTZ-150W | |
| ZLTZ-3W | ZLTZ-6W | ZLTZ-10W | |||||||||
| TEMP CONTROL | -10℃ ~25℃ | ||||||||||
| Cooling capacity | at 0℃ | 8.1kW | 16.25kW | 28.5kW | 40.2kW | 44.6kW | 70.6kW | 89.2kW | 166.5kW | 215kW | 314.9kW |
| at -10℃ | 5.48kW | 11kW | 19.35kW | 26.6kW | 29.8kW | 48.2kW | 59.6kW | 118kW | 147.7kW | 226.6kW | |
ZLTZ -40℃~20℃
| MODEL | ZLTZ4-3 | ZLTZ4-6 | ZLTZ4-10 | ZLTZ4-15W | ZLTZ4-20W | ZLTZ4-30W | ZLTZ4-40W | ZLTZ4-75W | ZLTZ4-100W | ZLTZ4-150W | |
| ZLTZ4-3W | ZLTZ4-6W | ZLTZ4-10W | |||||||||
| TEMP CONTROL | -40℃ ~20℃ | ||||||||||
| Cooling capacity | at -10℃ | 5.2kW | 11.15kW | 18.4kW | 26.3kW | 31.6kW | 48.2kW | 70.2kW | 124.3kW | 160.4kW | 271.9kW |
| at -20℃ | 3.47kW | 7.41kW | 12.3kW | 18.35kW | 21.4kW | 31.4kW | 46kW | 100.1kW | 134kW | 207.8W | |
| at -30℃ | 2.24kW | 4.81kW | 7.92kW | 11.8kW | 12.67kW | 19.16kW | 28.2kW | 68.3kW | 90.4kW | 142.3kW | |
| at -40℃ | 1.36kW | 2.95kW | 4.7kW | 5.83kW | 6.74kW | 10.45kW | 15.41kW | 42.8kW | 55.2kW | 89.3kW | |
ZLTZ -80℃~-30℃
| MODEL | ZLTZ8-3 | ZLTZ8-6 | ZLTZ8-10 | ZLTZ8-15W | ZLTZ8-20W | ZLTZ8-30W | ZLTZ8-40W | ZLTZ8-75W | ZLTZ8-100W | ZLTZ8-150W | |
| ZLTZ8-3W | ZLTZ8-6W | ZLTZ8-10W | |||||||||
| TEMP CONTROL | -80℃~ -30℃ | ||||||||||
| Cooling capacity | at -30℃ | ||||||||||
| at -40℃ | 6.9kW | 14.8kW | 24.4kw | 36.7kW | 42kW | 73.2kW | 110kW | 187.5kW | 257.5kW | 365kW | |
| at -60℃ | 3.3kW | 7.1kW | 12kW | 17.4kW | 20kW | 35kW | 52.5kW | 89.3kW | 122.5kW | 173.8kW | |
| at -75℃ | 1.65kW | 3.55kW | 6kW | 8.7kW | 10kW | 17.5kW | 26.2kW | 44.7kW | 61.3kW | 87kW | |
Other configurations
| Compressor | Inverter compressor | |||
| Throttling method | Electronic expansion valve | |||
| Operation panel | 7-inch color touch screen/PLC controller | |||
| Communication | Modbus RTU protocol RS485 interface 、Ethernet TCP/IP protocol | |||
| Refrigerant | R134A | |||
| Interface size | G1/2 | G1/2 | G3/4 | |
| Water cooled at 20℃ | 1500L/H | 3000L/H | 4500L/H | |
| G1/2 | G3/4 | G3/4 | ||
| Water-cooled condenser | The water-cooled equipment condenser uses plate heat exchangers and requires water supply from a chiller or a closed cooling tower |
|||
| Air-cooled condenser | Microchannel Heat Exchanger | Microchannel Heat Exchanger | Microchannel Heat Exchanger | |
| Power | 380V 50HZ ,can choose three-phase 220V/460V | |||
| Pipe materials | Copper, SUS304 | |||
| Shell material | Cold rolled sheet (standard color 7035) | |||
Product Description
The ZLTZ temperature control unit is combined with a microchannelreactor to form a high heat release temperature control application.Under the same flow condition, the heat transfer efficiency of thetemperature control is more than 5 times that ofthe heat transfer oil.At the same time, the temperature difference between the inlet andoutlet is small, and the temperature field uniformity is high, which isparticularly suitable for applications with intense heat release reactions.
ZLTZ temperature control unit is used in combination with cold plateand heat sink plate for high heat absorption and high uniformitytemperature control.
The ZLTZ temperature control unit is combined with ESC chucks,vacuum chucks, etc. to achieve a temp control range of -65~200°CAt the same time, one ZLTZ temperature control unit with multipleESC chucks can control

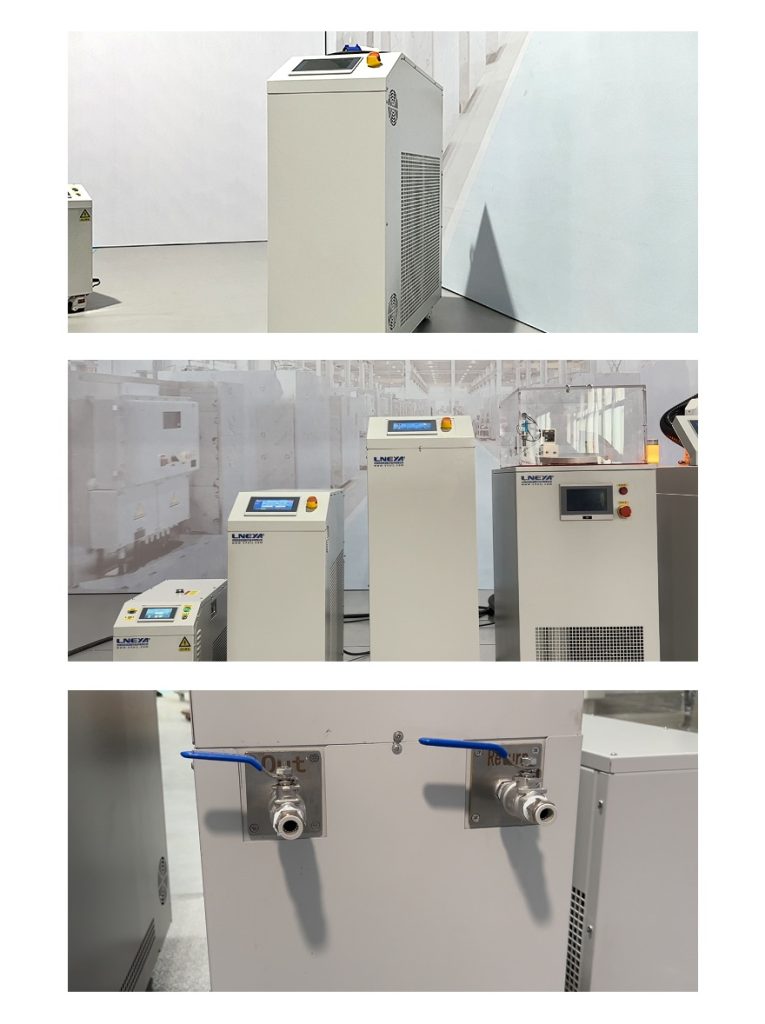

Appearance details
Send us a message about the ZLTZ Series Chiller Circualtor
