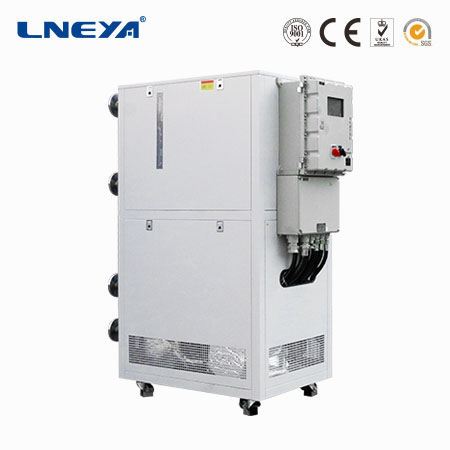

Heating Circulator

UC +50℃~300℃

Heating Circulators UC series

Heating Power5.5kW~130kW
Power range6kW~136kW
Cooling power1.8kW~130kW
Temperture accuracy±0.5℃

WhatsApp: 86 13912479193

WeChat 86 15152266993

Support outlet temperature control of thermal conductive media

Fully enclosed system, heat transfer oil will not be oxidized or browning

Temp. Control 50~300℃, Temp Accuracy of ±0.5°C

Suitable for temperature control in more usage scenarios

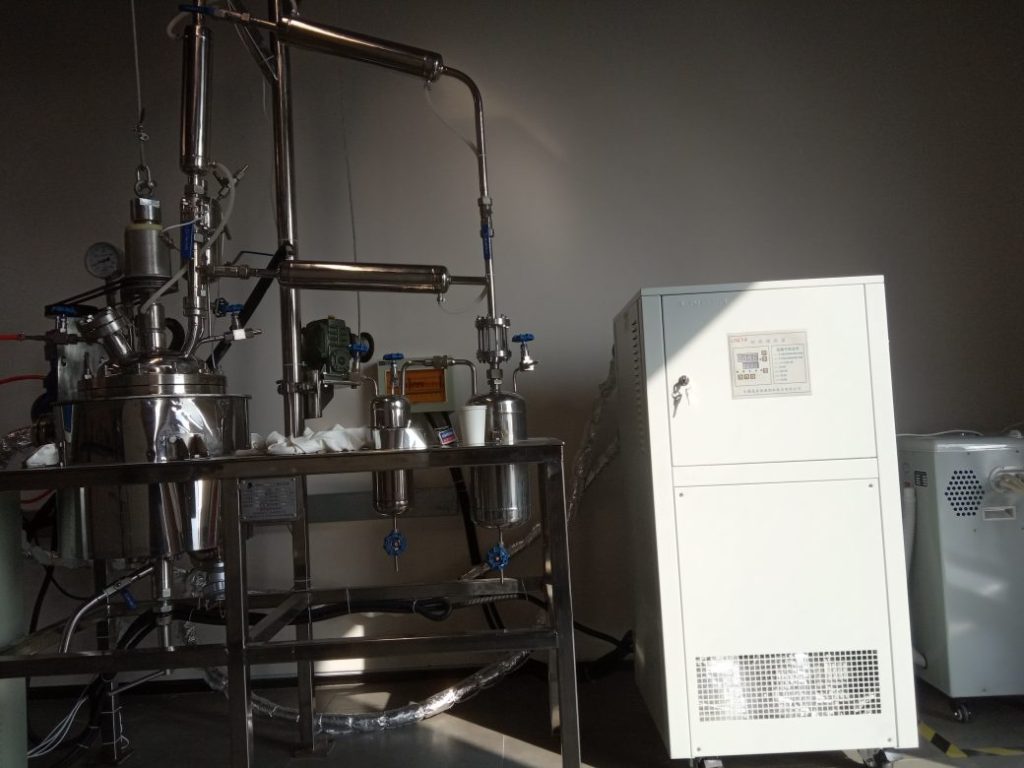

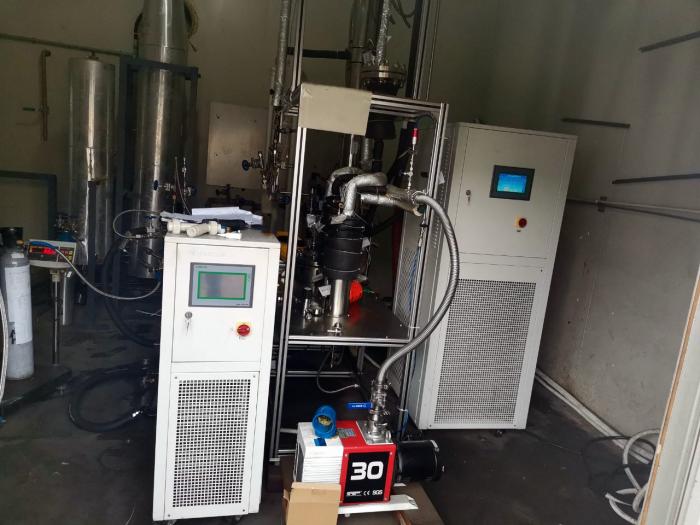

Used with reactors, reactors, microchannels, distillation systems, etc., and also used for heating and cooling of other equipment. Widely used in pharmaceutical, chemical, biological, semiconductor, new materials and other industries

Model		UC-5530N	UC-7530N	UC-A1030N	UC-A1530N	UC-A2530N	UC-A3830N	UC-A6030N	UC-A9530N	UC-A13030N
Temp range		50℃～300℃
Controller		PID adaptive controller
Temp control		Heat-conducting medium outlet temp. control
Display/Record		7-inch color touch screen，recording temperature curve，data export using excel format
Temp feedback		Heat-conducting medium temperature feedback Pt100
Temp accuracy		±0.5℃
Heating power KW		5.5kW	7.5kW	10kW	15kW	25kW	38kW	60kW	95kW	130kW
Cooling Capacity kW at	300℃	5.5kW	7.5kW	10kW	15kW	25kW	38kW	60kW	95kW	130kW
	200℃	5..5kW	7.5kW	10kW	13kW	25kW	38kW	60kW	95kW	130kW
	100℃	4kW	5kW	7kW	12kW	20kW	30kW	48kW	76kW	100kW
	65℃	1.8kW	2.2kW	3kW	5kW	8.5kW	12kW	19kW	30kW	40kW
Criculation pump flow		Max35L/min 1.2BAR	Max50L/min 1.2BAR	Max50L/min 1.2BAR	Max110L/min 1.5BAR	Max150L/min 1.5BAR	Max200L/min 1.5BAR	Max250L/min 2.5BAR	Max400L/min 2.5BAR	Max400L/min 2.5BAR
Heater		Flanged pipe electric heater
Independent temp. limite		Lneya
Cooler		Copper Tube Aluminum Fin air-cooled Condenser			Plate heat exchanger/Tube heat exchanger
Safety Protection		Self-diagnosis function; freezer overload protection; high pressure switch; overload relay; thermal protection device and other safety protection
Closed Circulation System		The whole system is a full closed circulation, there is No oil mist at high temperature,pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size		ZG3/4	ZG1	ZG1	ZG1	DN32 PN10	DN40 PN10	DN40 PN10	DN50 PN10	DN50 PN10
Dimension cm		4070130	4570160	4570160	70100175	70100175	80120185	150100185	200145205	200145205
Weight kg		110	120	160	195	265	395	615	1220	1400
Power max AC 380V 50HZ		7kW	9kW	12kW	17kW	28kW	41kW	65kW	101kW	136kW
Case material		Cold rolled sheet (REL7035)
Optional		220V 60HZ three phase，440V～460V 80HZ three phase

Model		LY-5020	LY-A020	UC-5020	UC-A1020	UC-A1520
Temp range		50℃～170℃
Controller		PID adaptive controller
Tempcontrol		Heat-conducting medium outlet temp. control
Temp feedback		Heat-conducting medium temperature feedback Pt100
Temp accuracy		±0.5℃
Heating power KW		5.5kW	10kW	5.5kW	10kW	15kW
Cooling Capacity kW at	170℃			5.5kW	10kW	15kW
	100℃			4kW	8kW	12kW
	65℃			1.8kW	3.4kW	5kW
Criculation pump flow		35L/min 1.5BAR	50L/min 1.5BAR	35L/min 1.5BAR	50L/min 1.5BAR	50L/min 1.5BAR
Heater		Flanged pipe electric heater
Independent temp. limite		Rainbow temperature protector
Cooler		Copper Tube Aluminum Fin air-cooled Condenser				Plate heat exchanger
Operation panel		Display set temperature and measured temperature，key operation input temperature
Safety Protection		overload relay、variety of security features such as thermal protection devices
Closed Circulation System		The whole system is a full closed circulation, there is No oil mist at high temperature,pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size		ZG3/4	ZG3/4	ZG3/4	ZG3/4	ZG1
Dimension cm		4070130	4070130	4070130	4070130	70100175
Weight kg		70kg	80kg	78kg	128kg	170kg
Power max AC 380V 50HZ		6kW	11kW	6kW	11kW	16kW
Case material		Cold rolled sheet (REL7035)
Optional		Optional 7-inch color touch screen，recording temperature curve，data export using excel format
Optional		SUS304 shell
Optional		220V 60HZ three phase，440V～460V 80HZ three phase

Descriptions

Heating Circulator UC series with function from high temperature to cooling process, from 300℃~50℃.
Equipped with heating cooling container, with large heat transfer area, fast heat-up and cool-down, small heat transfer oil demand.
Can heat-up and cool-down continuously.
The whole cycle is full closed,there is no oil mist at high temperature, heat transfer oil can not be oxidized and browning.
With function of internal PT100 for correcting internal circulation.
The whole system is closed with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.

Operation interface

Key operation to enter temperature setting temperature, or 7-inch color touch screen, record temperature curve, data export in excel format

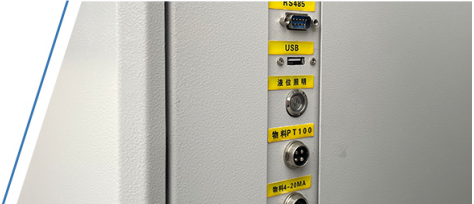

Data communication interface

Optional various other analog interfaces and contact signals, Ethernet interface

Send us a message about UC series Heating Circulator

Note: The UC series can only control the temperature of the thermal conductivity medium, while the UST series can not only control the temperature of the thermal conductivity medium but also reflect the temperature of the material.
