Why Choose an Oil Chiller for High-Temperature Applications

Industrial equipment accumulates heat over time during continuous operation. Users of water chillers may find that when process temperatures exceed 100°C, the water boils. Scale buildup and temperature fluctuations can affect the process.

This is where oil chillers come in handy. They use thermal oil instead of water to remove heat, allowing them to withstand higher temperatures and provide greater temperature stability.

What Is an Oil Chiller

An oil chiller, or oil-based chiller, is a type of industrial temperature control unit that uses thermal oil as the process fluid. Instead of relying on water or glycol, the oil chiller circulates heat transfer oil through the equipment, absorbs the process heat, and releases it through a refrigeration loop.

The system is made up of a compressor, condenser, evaporator, oil pump, and expansion valve, just like a traditional chiller. However, the key difference between an oil-based chiller and a water-based chiller is that the process fluid used is thermal oil, which has a higher boiling point. This allows it to operate stably at temperatures of 200°C or even higher.

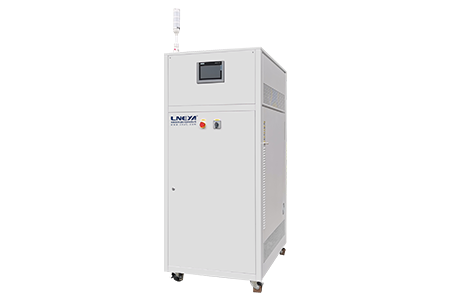

Why Choose an Oil Chiller for High-Temperature Applications - high temperature cooling (Image 1)

Advantages of an Oil Chiller

Wide Temperature Range

An oil chiller can handle a broad span of temperatures. Some models work from -20 ℃ up to 300 ℃. That range makes the unit useful when a process needs fast heating and then precise cooling.

Think of an extrusion line that heats a polymer and then needs tight control while it sets. A water chiller would struggle because water can boil or freeze. An oil cooling system follows the whole cycle without losing control. One machine replaces separate heaters and chillers. That saves floor space and reduces equipment costs.

Excellent Thermal Stability

Thermal oil keeps its shape under heat. Water can turn to steam or leave scale that blocks flow. Those effects cause unstable readings and uneven temperatures. Thermal oil does not boil at typical process temperatures. The result is steady heat transfer and cleaner temperature curves.

In a lab or on a production floor, this stability shows up as fewer surprise trips and fewer ruined runs. For a batch process where a few degrees ruin the product, stable oil is the difference between a good run and a scrap load.

Corrosion Resistance

Oil systems avoid rust problems that plague water loops. Water corrodes metal and can breed bacteria. Over the years that eats into pipes and heat exchangers. An oil-based chiller runs dry inside and keeps the loop clean. No water treatment is needed and no mineral deposits build up.

Uniform Heat Transfer

Oil flows with consistent viscosity across a wide temperature band. That helps the fluid reach every passage and surface evenly. Even flow limits hotspots and keeps temperature differences small across a mold or reaction vessel. That uniformity reduces part warpage and improves repeatability.

Some people worry that oil is slower at transferring heat than water. In real high temperature work the stable behavior of oil gives tighter control. That often beats water systems that must fight vapor pockets and scale.

Lower Maintenance Costs

An oil chiller needs less routine work than a traditional water chiller. There is no constant fill of water and no need for water chemistry control. The closed oil loop only needs occasional checks on oil condition and filter condition. That check can be part of a twice yearly inspection in many plants.

Refrigeration parts like compressors and condensers also run under steadier loads when the oil behaves predictably. That lowers wear and extends service life. Over months and years this leads to fewer repairs, less downtime, and lower total cost of ownership.

Explore LNEYA Oil Chillers

When water-cooled water chillers are insufficient for high-temperature applications, oil chillers are a more suitable alternative. They provide a stable, safe, and precise operating environment for high-temperature processes.

LNEYA offers oil chillers specifically designed for cooling equipment and processes. We can customize equipment parameters to meet your specific needs.
